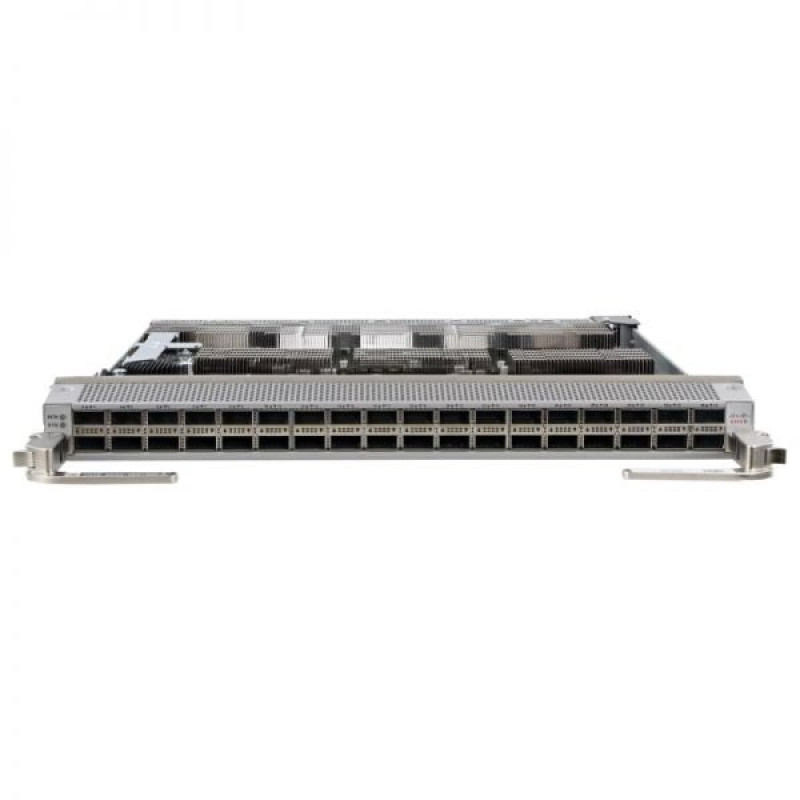

Cisco NC55-36X100G-BM
Cisco NC55-36X100G-BM

Cisco NC55-36X100G-BM

Нет отзывов
Код товара: Cisco NC55-36X100G-BM
22 536 439 ₽
В наличии много 1000 шт

Cisco's NC55-36X100G-BM is a high-performance networking switch in the NCS 5500 series that offers advanced security features like MACsec encryption. Targeting large enterprises and data centers, it is designed to handle the rigorous demands of high-bandwidth applications with reliability and efficiency.

NC55-36X100G-BM Product Highlights

  • ● 36-port 100G capacity
  • ● MACsec encryption support
  • ● High-density switching
  • ● Advanced traffic handling
  • ● Energy efficient

Product Features Comparison

Model NC55-36X100G-BM NC55-24H12F-S NC55-18H5F-S NC55-32Q6H-S NC55-24Q-S
Ports 36x100G 24x100G + 12x10G 18x100G + 5x10G 32x40G + 6x100G 24x40G
MACsec Supported Supported Not Supported Not Supported Supported
Throughput 3.6 Tbps 2 Tbps 1.8 Tbps 2.4 Tbps 1 Tbps
Power Consumption 350W 300W 250W 270W 200W
Form Factor 1 RU 2 RU 1 RU 2 RU 1 RU
Cooling Front-to-back Front-to-back Side-to-side Front-to-back Front-to-back
Use Case Data Center Aggregation Enterprise Core Access Layer Spine & Leaf

NC55-36X100G-BM Product Application Scenarios

  • ● High-performance data centers
  • ● Enterprise core networking
  • ● Cloud service providers

Optional Add-ons

Model Description
QSFP-100G-SR4-S 100GBASE-SR4 Transceiver Module
CAB-Q-Q-2M QSFP to QSFP Copper Cable 2m
NC5500-FAN Spare Fan Module for NCS 5500

Get More Information

Discover unbeatable prices and fast shipping for the Cisco NC55-36X100G-BM. Access the detailed NC55-36X100G-BM datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.

Характеристики

Brand Cisco
Buffer Size 40 MB
Certifications RoHS, CE, FCC
Cooling Front-to-back airflow
Dimensions (HxWxD) 1.72 in x 17.5 in x 21.5 in
Firmware IOS XR
Forwarding Bandwidth 3.6 Tbps
Interfaces 36 x 100GE Ports
Jumbo Frame Support Yes, up to 9216 bytes
MACsec Support Yes
Max Power Consumption 1200W
Model NC55-36X100G-BM
MTBF 1,200,000 hours
Operating Temperature 0??C to 40??C (32??F to 104??F)
Power Supply Dual-redundant, hot-swappable
Product Name NCS 5500 36X100G MACsec Base
Rack Units 1 RU
Relative Humidity 5% to 95% (non-condensing)
Storage Temperature -40??C to 70??C (-40??F to 158??F)
Switching Capacity 3.6 Tbps
Throughput 2.8 Bpps
