Cisco NCS1K-ILA-2R-C
Cisco NCS1K-ILA-2R-C

Cisco NCS1K-ILA-2R-C

Нет отзывов
Код товара: Cisco NCS1K-ILA-2R-C
8 769 522 ₽
В наличии много 1000 шт

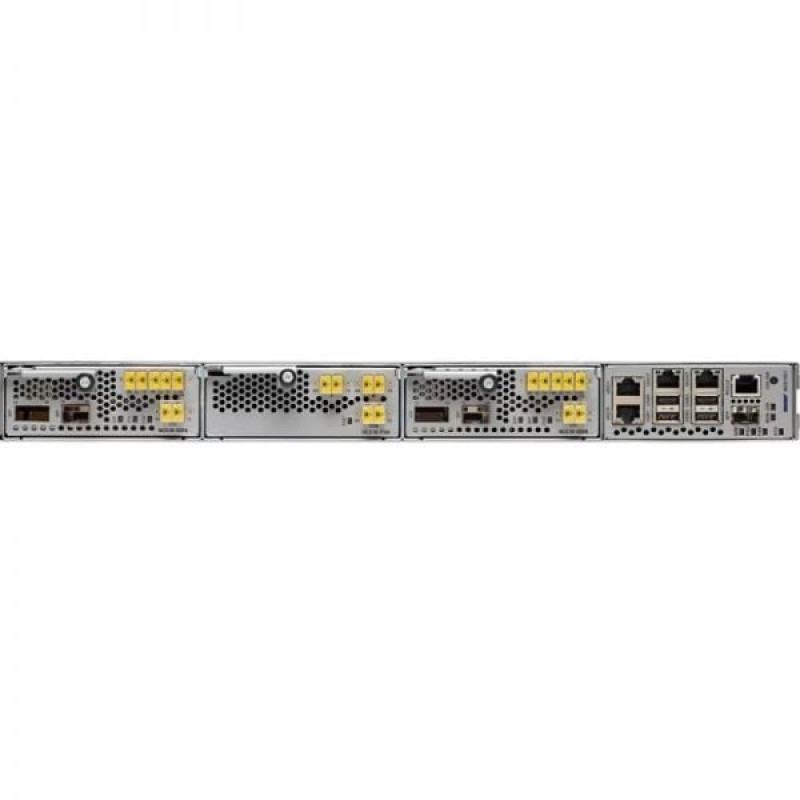

Cisco's NCS1K-ILA-2R-C is a high-performance NCS 1010 In-Line Amplifier with 2x Raman modules optimized for the C-band. Ideal for engineers seeking reliable and scalable solutions, this product shines in long-haul transmission applications, ensuring enhanced network performance and efficiency.

NCS1K-ILA-2R-C Product Highlights

  • ● High-performance C-band amplifier
  • ● Supports dual Raman modules
  • ● Enhanced network scalability
  • ● Ideal for long-haul transmission
  • ● Reliable and efficient operation

Product Features Comparison

Model Cisco NCS1K-ILA-2R-C Huawei OSN 9800 Nokia 1830 PSS Juniper BTI7800 Ciena 6500 ADVA FSP 3000 Infinera DTN-X
Amplifier Type C-band, 2x Raman C-band, EDFA L-band, Raman C-band, Raman C-band, EDFA L-band, EDFA C-band, Raman
Max Output Power 17 dBm 16 dBm 18 dBm 17 dBm 16 dBm 17 dBm 18 dBm
Noise Figure 5 dB 5.5 dB 5 dB 5.2 dB 5.3 dB 5.1 dB 5 dB
Operational Wavelength 1530-1565 nm 1528-1565 nm 1565-1625 nm 1530-1565 nm 1528-1565 nm 1565-1625 nm 1530-1565 nm
Monitor Ports Yes No Yes Yes No Yes Yes
Optical Protection Yes Yes Yes Yes Yes Yes Yes
Rack Units 1 RU 2 RU 1 RU 1 RU 2 RU 1 RU 1 RU

NCS1K-ILA-2R-C Product Application Scenarios

  • ● Long-haul transmission networks
  • ● Data Center Interconnect (DCI)
  • ● Telecommunications backhaul

Optional Add-ons

Model Description
NCS1K-4Q10-AIM 4-port 10G Aggregation Interface Module
NCS1K-PSU Power Supply Unit
NCS1K-FAN Fan Tray

Get More Information

Discover unbeatable prices and fast shipping for the Cisco NCS1K-ILA-2R-C. Access the detailed NCS1K-ILA-2R-C datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.

Характеристики

Amplifier Type In-Line
Brand Cisco
Compliance GR-63-CORE, GR-1089-CORE, NEBS Level 3
Cooling Passive
Dimensions (HxWxD) 44.5 x 440 x 364 mm
Gain 20 dB
Input Voltage 12V DC
Model NCS1K-ILA-2R-C
Noise Figure 4.5 dB
Operating Band C-band
Operating Humidity 5% to 95% (non-condensing)
Operating Temperature 0??C to 70??C
Optical Connector Type LC/UPC
Optical Power Output 17 dBm
Power Consumption 45 Watts
Product Series NCS 1010
Rack Units 1 RU
Raman Units 2x Raman
Storage Temperature -40??C to 85??C
Wavelength Range 1528.77 nm to 1563.86 nm
