Backplane Capacity
24Tbps
Cooling System
Front-to-back airflow
Dimensions (HxWxD)
133.5 mm x 430 mm x 900 mm
Energy Efficiency
Complies with IEEE 802.3az
Forwarding Rate
7,200 Mpps
Layer 2 Features
STP/RSTP/MSTP, VLAN
Layer 3 Features
Static Route, RIP, OSPF
Management Interface
1 x Console, 1 x Mgmt
Memory
64GB DRAM

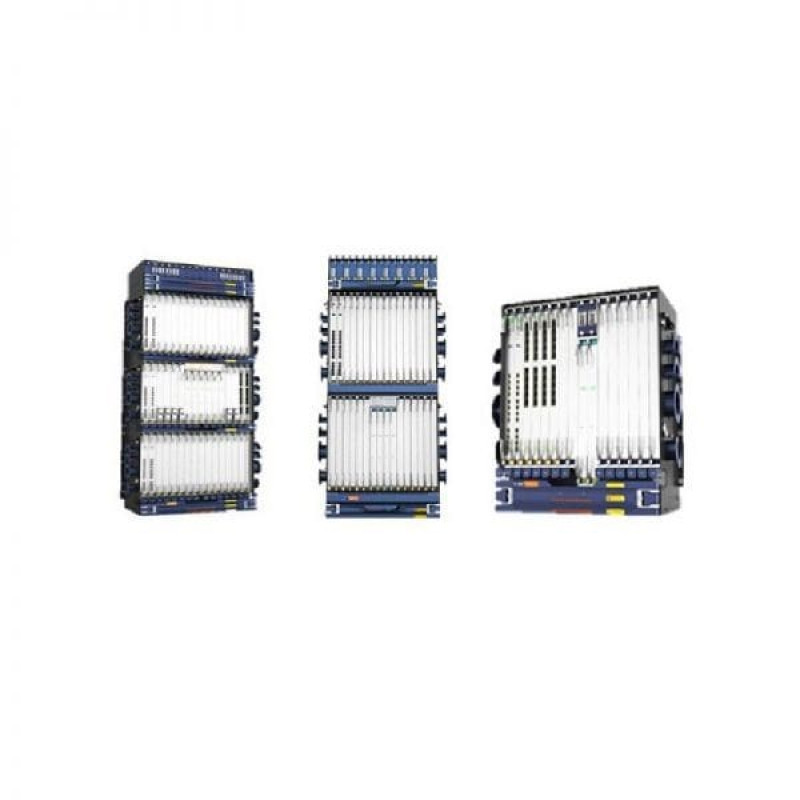

Model
CiTRANS 690 U30
Mounting
Rack-mountable
Operating Temperature
-5??C to 45??C
Ports
48 x 10GE, 12 x 40GE
Power Supply
Dual redundant power supplies
Processor
High-performance multi-core processor
Protocol Support
IPv4/IPv6, MPLS, OSPF, BGP
Quality of Service (QoS)
8 queues per port
Security Features
ACL, Port Security
Switching Capacity
12.8T
Warranty
3 years
