Adapter Type
Fibre Channel Host Bus Adapter
Channels
Dual Channel
Compatible Operating Systems
Windows, Linux, VMware
Connection Speed
32Gb/s Fibre Channel
Form Factor
Stand-up PCI Express
Humidity Range Operating
10% to 90%, non-condensing
LED Indicators
Link and Activity LED per port
Power Consumption
Typical 13W, Maximum 15W
Product Brand
HPE
Product Dimensions (H x W x D)
2.71 x 14.9 x 19.05 cm
Product Name

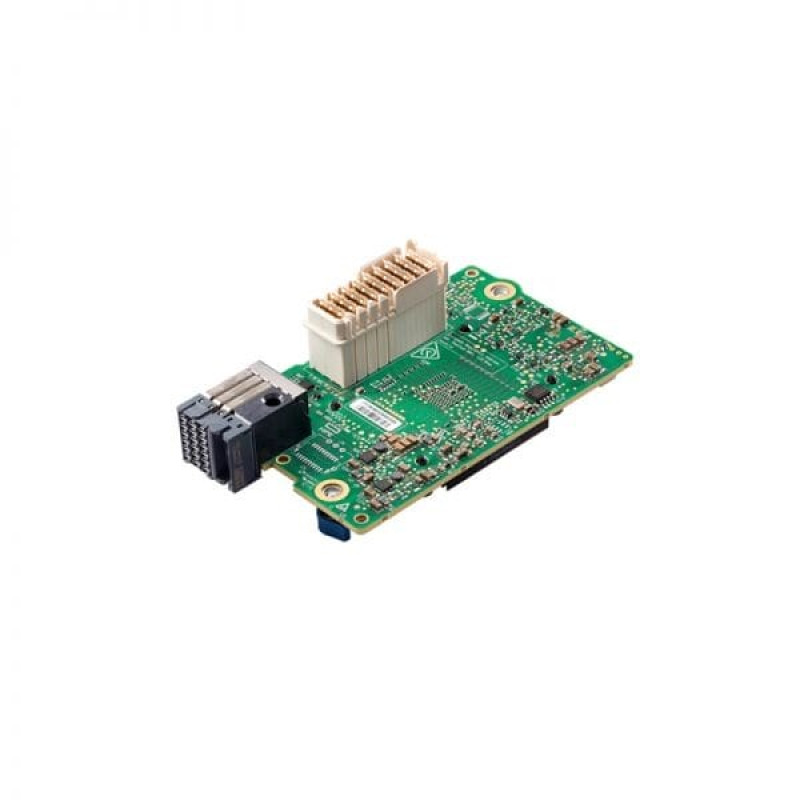

HPE Synergy 5330C 32Gb Fibre Channel Host Bus Adapter
Product Number
870828-B21
Protocols Supported
SCSI, FC-PI-6, FC-FS-3, FC-LS, FC-GS-6, FC-Tape, FCP-4
Regulatory Approvals
FCC Class A, UL, CE, VCCI, BSMI, CTick, KCC
Security Features
Secure Boot, Secure Firmware
Server Compatibility
HPE Synergy Gen9 and Gen10 Servers
Slot Type Supported
PCIe 3.0
Storage Temperature Range
-45°C to 85°C (-49°F to 185°F)
Temperature Range Operating
0°C to 55°C (32°F to 131°F)
Warranty
Limited 1-year warranty
