Brand
HPE
Chipset Support
Intel C620 Series
Clock Speed
2.4GHz
Compatibility
HPE DL360 Gen10 Server
Core Count
24-core
Enhanced Intel SpeedStep? Technology
Yes
Instruction Set
64 bit
Intel? Hyper-Threading Technology
Yes
L3 Cache
35.75 MB
Max Memory Size (dependent on memory type)
Dependent on server system
Max Number of PCI Express Lanes
48
Max PCI Express Lanes
48 lanes
Max Turbo Frequency
3.9GHz
Memory Speed Supported
Up to 2933 MHz
Memory Type Supported
DDR4
Model Number
P02694-B21
Processor Base Frequency
2.4 GHz
Processor type

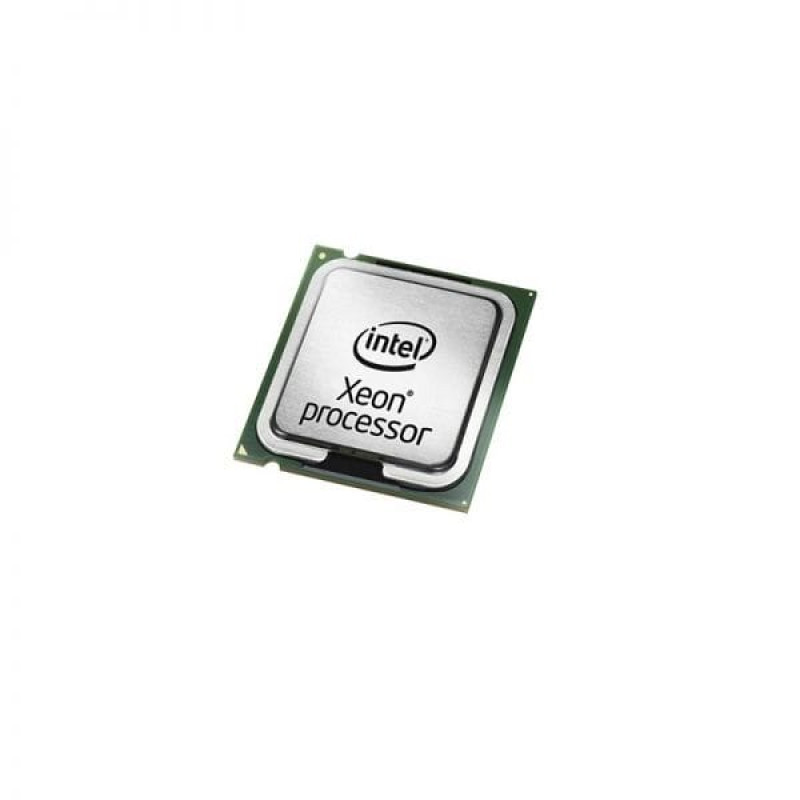

Intel Xeon-Platinum 8260M
Product Name
HPE DL360 Gen10 Intel Xeon-Platinum 8260M Processor Kit
Socket Type
FCLGA3647
System TDP/Cooling Solution
165W is the maximum supported TDP; cooling solution is not included
Thermal Design Power (TDP)
165W
Thermal Solution Specification
PCG 2017D
