3RS1042-1GW70

3RS1042-1GW70

3RS1042-1GW70

Нет отзывов

Siemens

Бренд

Код товара: 3RS1042-1GW70

0 ₽

В наличии много 1000 шт

Описание
Отзывов (0)

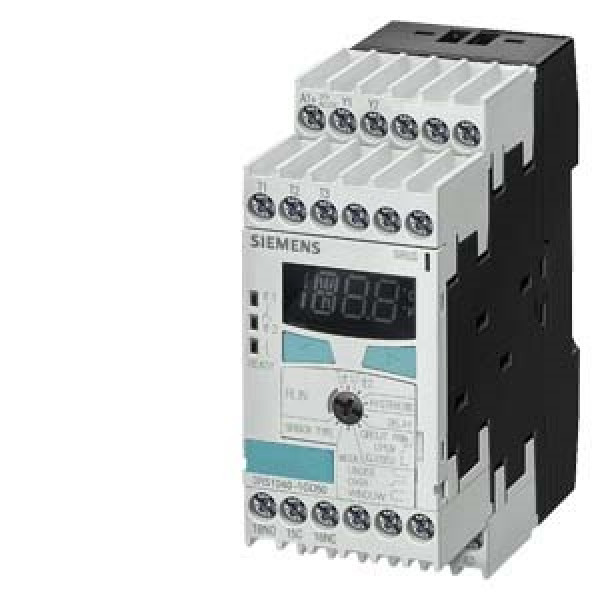

temperature monitoring relay Pt100/1000 KTY83/84, NTC 2 threshold values digitally adjustable -50 °C to 750 °C (sensor-dependent) 24-240 V AC/DC 2 x 1 CO + 1 NO, width 45 mm screw terminal !!!phased-out product!!! the preferred successor is 3RS2600-1BW30

Product

Article Number (Market Facing Number)

3RS1042-1GW70

Product Description

temperature monitoring relay Pt100/1000 KTY83/84, NTC 2 threshold values digitally adjustable -50 °C to 750 °C (sensor-dependent) 24-240 V AC/DC 2 x 1 CO + 1 NO, width 45 mm screw terminal !!!phased-out product!!! the preferred successor is 3RS2600-1BW30

Product family

Not available

Product Lifecycle (PLM)

PM490:Start of final year of support

PLM Effective Date

Product discontinued since: 01.10.2024

Notes

Product was deleted without replacementIf you need assistance please contact our local Siemens office

Price data

Region Specific PriceGroup / Headquarter Price Group

41H / 41H

List Price

Show prices

Customer Price

Show prices

Surcharge for Raw Materials

None

Metal Factor

LAO-----

Delivery information

Export Control Regulations

ECCN : N / AL : N

Estimated dispatch time (Working Days)

20 Day/Days

Net Weight (kg)

0,303 Kg

Packaging Dimension

53,00 x 111,50 x 105,00

Package size unit of measure

MM

Quantity Unit

1 Piece

Packaging Quantity

1

Additional Product Information

EAN

4011209589773

UPC

754554930596

Commodity Code

85364900

LKZ_FDB/ CatalogID

CC-IC10

Product Group

5882

Group Code

R711

Country of origin

Germany

Compliance with the substance restrictions according to RoHS directive

Since: 01.05.2012

Product class

C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.

WEEE (2012/19/EU) Take-Back Obligation

Yes

REACH Art. 33 Duty to inform according to the current list of candidates

Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

lblREACHCode0237 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

lblREACHCode0237

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number

Classifications

Not available
