3RT2448-6KB40-0KS0

3RT2448-6KB40-0KS0

3RT2448-6KB40-0KS0

Нет отзывов

Siemens

Бренд

Код товара: 3RT2448-6KB40-0KS0

0 ₽

В наличии много 1000 шт

Описание
Отзывов (0)

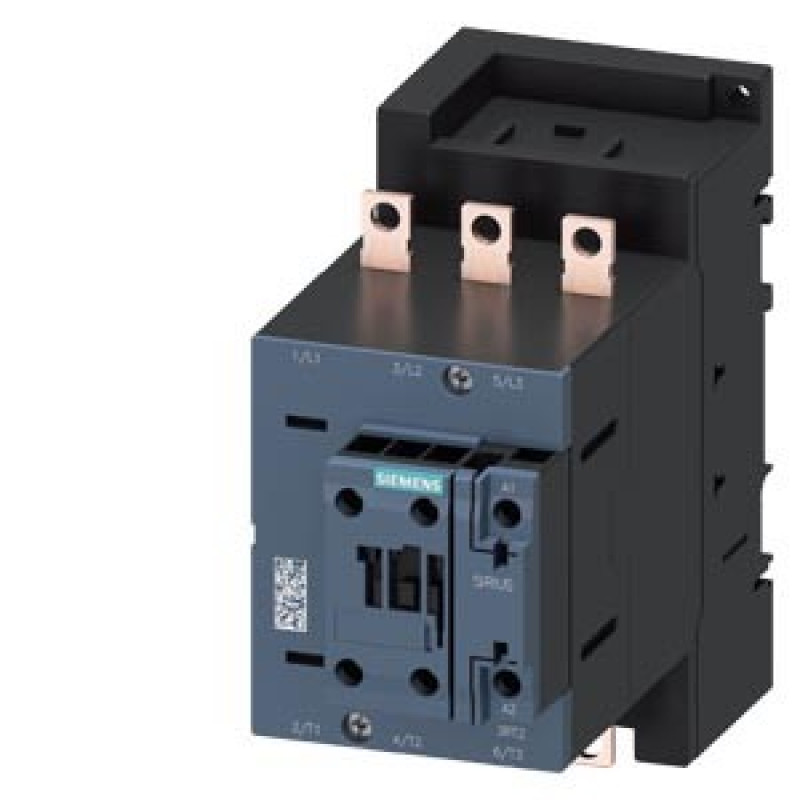

contactor AC-1, 160 A, 690 V / 40 °C, 3-pole, 24 V DC, 0.8-1.2* Us, with integrated varistor, auxiliary contacts: 1 NO + 1 NC, main circuit: ring cable lug connection, control and auxiliary circuit: screw terminal, size: S3, customer-specific, only expandable with auxiliary switch 3RH2911-2XF22-0KS

Product

Article Number (Market Facing Number)

3RT2448-6KB40-0KS0

Product Description

contactor AC-1, 160 A, 690 V / 40 °C, 3-pole, 24 V DC, 0.8-1.2* Us, with integrated varistor, auxiliary contacts: 1 NO + 1 NC, main circuit: ring cable lug connection, control and auxiliary circuit: screw terminal, size: S3, customer-specific, only expandable with auxiliary switch 3RH2911-2XF22-0KS

Product family

Not available

Product Lifecycle (PLM)

PM300:Active Product

Price data

Region Specific PriceGroup / Headquarter Price Group

41B / 41B

List Price

Show prices

Customer Price

Show prices

Surcharge for Raw Materials

None

Metal Factor

LEO-----

Delivery information

Export Control Regulations

ECCN : N / AL : N

Estimated dispatch time (Working Days)

5 Day/Days

Net Weight (kg)

1,674 Kg

Packaging Dimension

80,00 x 160,00 x 165,00

Package size unit of measure

MM

Quantity Unit

1 Piece

Packaging Quantity

1

Additional Product Information

EAN

4047621068305

UPC

195125050068

Commodity Code

85364900

LKZ_FDB/ CatalogID

CC-IC10

Product Group

5370

Group Code

R711

Country of origin

Germany

Compliance with the substance restrictions according to RoHS directive

Since: 15.03.2019

Product class

A: Standard product which is a stock item could be returned within the returns guidelines/period.

WEEE (2012/19/EU) Take-Back Obligation

Yes

REACH Art. 33 Duty to inform according to the current list of candidates

Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number

Classifications

Not available
