6AG1210-1PE31-2UL0
6AG1210-1PE31-2UL0

6AG1210-1PE31-2UL0

Нет отзывов
Код товара: 6AG1210-1PE31-2UL0
0 ₽
В наличии много 1000 шт

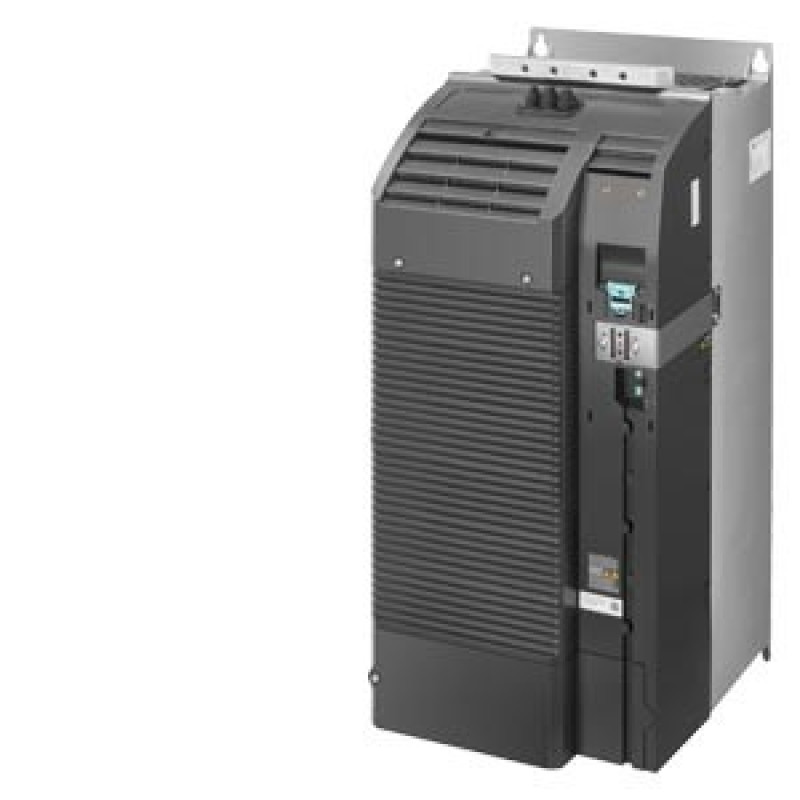

SIPLUS G120 PM240-2 IP20-FSF-U-400V 75 kW based on 6SL3210-1PE31-5UL0 with conformal coating, -20…+50 °C, unfiltered with integrated braking chopper 380-480 V 3 AC +10/-20% 47-63 Hz power high overload: 55 kW at 200% 3 s,150% 57 s,100% 240 s power low overload: 75 kW at 150% 3 s,110% 57 s,100% 240 s 708x 305x 357 (HxWxD), FSF design, degree of protection IP20 without CU and operating unit released as of CU FW version V4.7 HF8
Product
Article Number (Market Facing Number)6AG1210-1PE31-2UL0
Product DescriptionSIPLUS G120 PM240-2 IP20-FSF-U-400V 75 kW based on 6SL3210-1PE31-5UL0 with conformal coating, -20…+50 °C, unfiltered with integrated braking chopper 380-480 V 3 AC +10/-20% 47-63 Hz power high overload: 55 kW at 200% 3 s,150% 57 s,100% 240 s power low overload: 75 kW at 150% 3 s,110% 57 s,100% 240 s 708x 305x 357 (HxWxD), FSF design, degree of protection IP20 without CU and operating unit released as of CU FW version V4.7 HF8
Product familyNot available
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group471 / 471
List Price Show prices
Customer Price Show prices
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : 9N9999
Estimated dispatch time (Working Days)80 Day/Days
Net Weight (kg)58,000 Kg
Packaging Dimension469,00 x 745,00 x 385,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047618083618
UPCNot available
Commodity Code85044086
LKZ_FDB/ CatalogIDA&DSE/SIP ADD
Product Group4576
Group CodeR151
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 24.11.2017
Product classD: products made to order / customer's specifications, requiring engineering services, which cannot be re-used or utilized (design to customer)
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number
Classifications
VersionClassification
eClass120027-02-31-01
eClass140027-02-31-01
eClass60027-02-31-01
eClass71027-02-31-01
eClass80027-02-31-01
eClass90027-02-31-01
eClass91027-02-31-01
ETIM700EC001857
ETIM800EC001857
ETIM900EC001857
IDEA4004139
UNSPSC150039-12-10-07
