6AG1512-1DK01-2AB0

6AG1512-1DK01-2AB0

6AG1512-1DK01-2AB0

Нет отзывов

Siemens

Бренд

Код товара: 6AG1512-1DK01-2AB0

0 ₽

В наличии много 1000 шт

Описание
Отзывов (0)

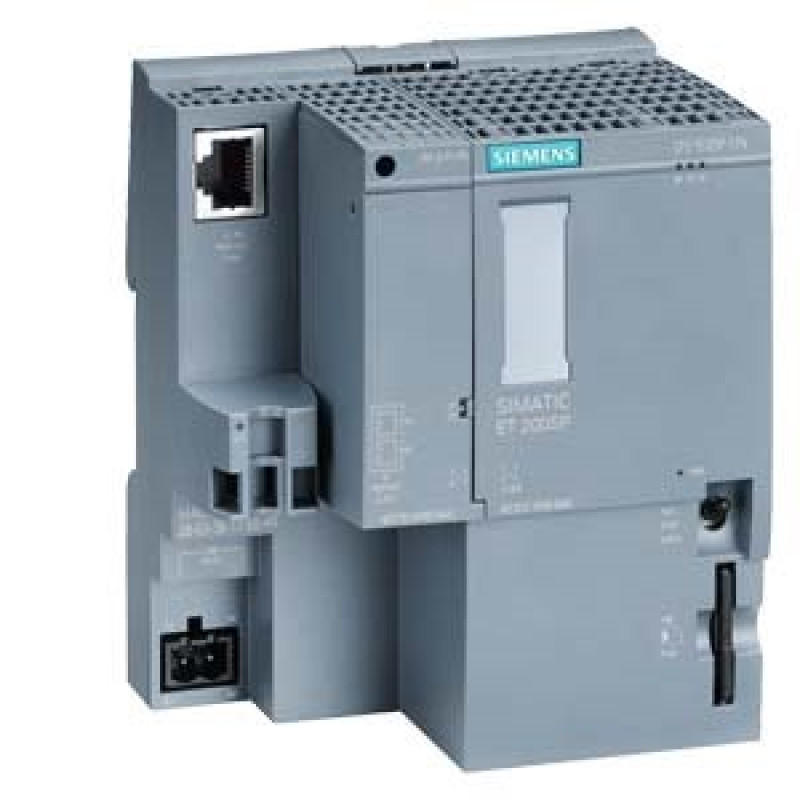

SIPLUS ET 200SP CPU 1512SP-1 PN based on 6ES7512-1DK01-0AB0 with conformal coating, -40…+60 °C, central processing unit with work memory 200 KB for program and 1 MB for data, 1st interface, PROFINET IRT with 3-port switch, 48 ns bit performance, SIMATIC Memory Card required, BusAdapter required for port 1 and 2

Product

Article Number (Market Facing Number)

6AG1512-1DK01-2AB0

Product Description

SIPLUS ET 200SP CPU 1512SP-1 PN based on 6ES7512-1DK01-0AB0 with conformal coating, -40…+60 °C, central processing unit with work memory 200 KB for program and 1 MB for data, 1st interface, PROFINET IRT with 3-port switch, 48 ns bit performance, SIMATIC Memory Card required, BusAdapter required for port 1 and 2

Product family

Not available

Product Lifecycle (PLM)

PM410:Product cancellation

PLM Effective Date

Product is cancelled since: 10.06.2024

Notes

The product was replaced with the following successor product:
6AG1512-1DM03-2AB0Compare ProductsThis product is a Spare Part, please visit the Spares & Service section for more informationIf you need assistance please contact our local Siemens office

Successor information

Successor

6AG1512-1DM03-2AB0

Successor Description

SIPLUS ET 200SP CPU 1512SP-1 PN based on 6ES7512-1DM03-0AB0 with conformal coating -40...+60 °C . central processing unit with work memory 400 KB for program and 2 MB for data, 1st interface: PROFINET IRT with 3-port switch, 25 ns bit performance, SIMATIC Memory Card required, BusAdapter required for port 1 and 2

Price data

Region Specific PriceGroup / Headquarter Price Group

2AP / 2AP

List Price

Show prices

Customer Price

Show prices

Surcharge for Raw Materials

None

Metal Factor

None

Delivery information

Export Control Regulations

ECCN : 9N9999 / AL : N

Estimated dispatch time (Working Days)

55 Day/Days

Net Weight (kg)

0,390 Kg

Packaging Dimension

13,00 x 13,00 x 8,00

Package size unit of measure

CM

Quantity Unit

1 Piece

Packaging Quantity

1

Additional Product Information

EAN

4047618072322

UPC

804766386046

Commodity Code

85371091

LKZ_FDB/ CatalogID

A&DSE/SIP ADD

Product Group

X0SM

Group Code

R151

Country of origin

Germany

Compliance with the substance restrictions according to RoHS directive

Since: 21.07.2014

Product class

B: return restricted, please contact your Siemens partner/contact

WEEE (2012/19/EU) Take-Back Obligation

Yes

REACH Art. 33 Duty to inform according to the current list of candidates

Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

4,4'-isopropylidened... CAS-No. 80-05-7 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

4,4'-isopropylidenediphenol (Bisphenol A, BPA)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number

Classifications

Not available
