6AG4104-4GN16-4BX0

6AG4104-4GN16-4BX0

6AG4104-4GN16-4BX0

Нет отзывов

Siemens

Бренд

Код товара: 6AG4104-4GN16-4BX0

0 ₽

В наличии много 1000 шт

Описание
Отзывов (0)

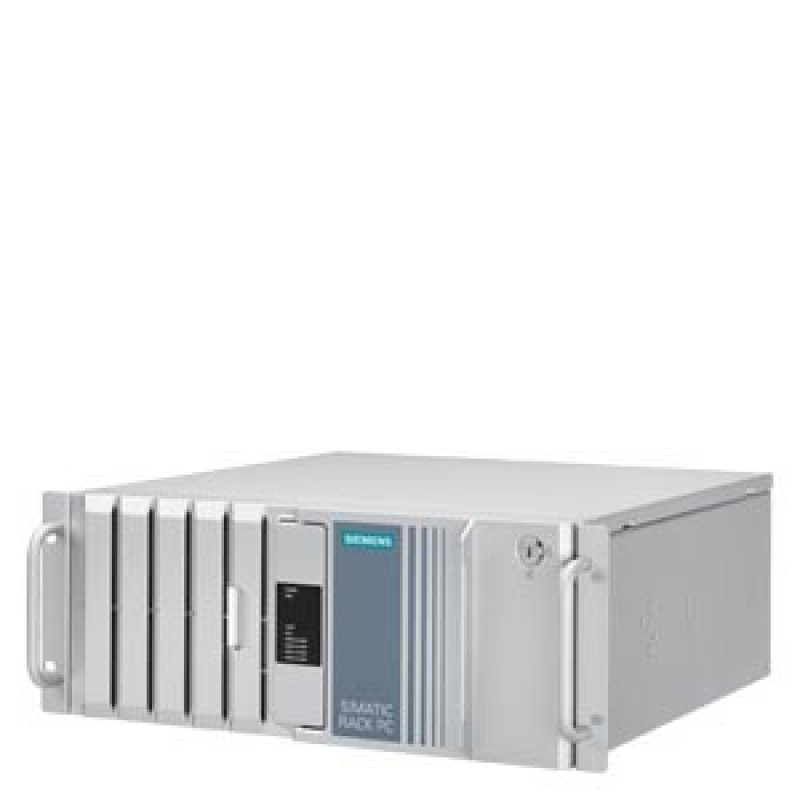

SIMATIC IPC547G (Rack PC, 19", 4HU); Core i5-6500 (4C/4T, 3.2(3.6) GHz, 6 MB cache, iAMT); MB (CHIPSET C236, 2x Gbit LAN, 2x USB3.0 front, 4x USB3.0 & 4x USB2.0 rear, 1x USB2.0 int. 1x COM 1, 2x PS/2, audio; 2x display ports V1.2, 1x DVI-D, 7 slots: 5x PCI-E, 2x PCI) RAID1 2x 1 TB HDD in interchangeable insert, front; 8 GB DDR4 SD-RAM (2x 4 GB) Enclosure painted, COM2+LPT, DVD +/-RW (SLIM); Adapter cable DP acc. to VGA; 100/240V AC industrial power supply unit, without line cable; Windows 7 Ultimate 64 bit SP1

Product

Article Number (Market Facing Number)

6AG4104-4GN16-4BX0

Product Description

SIMATIC IPC547G (Rack PC, 19", 4HU); Core i5-6500 (4C/4T, 3.2(3.6) GHz, 6 MB cache, iAMT); MB (CHIPSET C236, 2x Gbit LAN, 2x USB3.0 front, 4x USB3.0 & 4x USB2.0 rear, 1x USB2.0 int. 1x COM 1, 2x PS/2, audio; 2x display ports V1.2, 1x DVI-D, 7 slots: 5x PCI-E, 2x PCI) RAID1 2x 1 TB HDD in interchangeable insert, front; 8 GB DDR4 SD-RAM (2x 4 GB) Enclosure painted, COM2+LPT, DVD +/-RW (SLIM); Adapter cable DP acc. to VGA; 100/240V AC industrial power supply unit, without line cable; Windows 7 Ultimate 64 bit SP1

Product family

Not available

Product Lifecycle (PLM)

PM490:Start of final year of support

PLM Effective Date

Product discontinued since: 01.10.2024

Notes

Product was deleted without replacementIf you need assistance please contact our local Siemens office

Price data

Region Specific PriceGroup / Headquarter Price Group

2AP / 2AP

List Price

Show prices

Customer Price

Show prices

Surcharge for Raw Materials

None

Metal Factor

None

Delivery information

Export Control Regulations

ECCN : 5A992 / AL : N

Estimated dispatch time (Working Days)

15 Day/Days

Net Weight (kg)

17,820 Kg

Packaging Dimension

60,00 x 61,00 x 35,00

Package size unit of measure

CM

Quantity Unit

1 Piece

Packaging Quantity

1

Additional Product Information

EAN

4047622431658

UPC

804766454554

Commodity Code

84715000

LKZ_FDB/ CatalogID

IC10

Product Group

3361

Group Code

R133

Country of origin

Germany

Compliance with the substance restrictions according to RoHS directive

Since: 29.04.2016

Product class

B: return restricted, please contact your Siemens partner/contact

WEEE (2012/19/EU) Take-Back Obligation

Yes

REACH Art. 33 Duty to inform according to the current list of candidates

Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

1,2-dimethoxyethane,... CAS-No. 110-71-4 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

1,2-dimethoxyethane,ethylene glycol dimethyl ether (EGDME)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number
