6SL3223-0DE25-5AG1
6SL3223-0DE25-5AG1

6SL3223-0DE25-5AG1

Нет отзывов
Код товара: 6SL3223-0DE25-5AG1
0 ₽
В наличии много 1000 шт

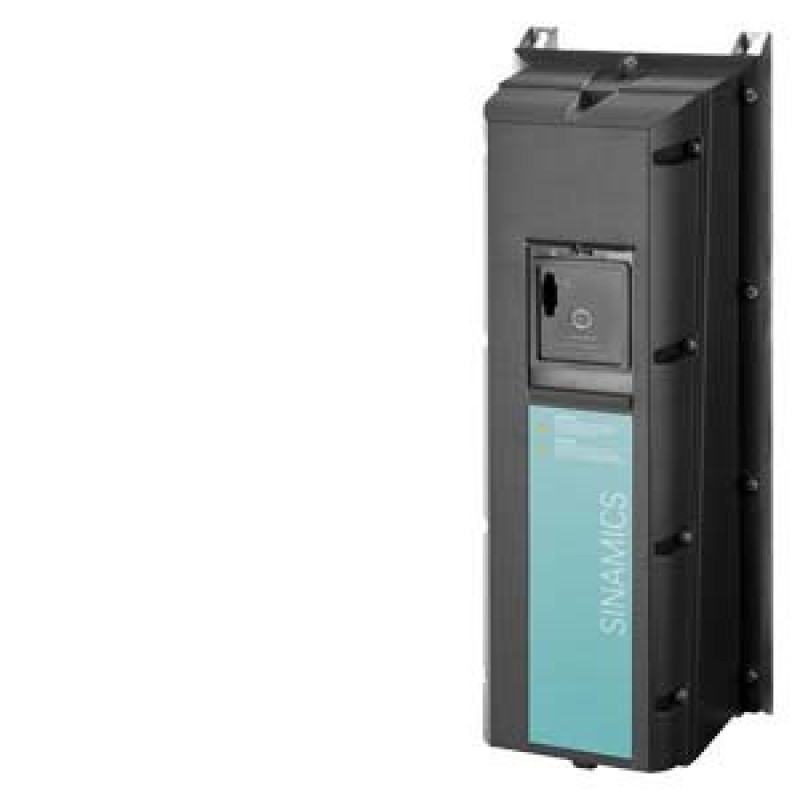

SINAMICS G120P Power Module PM230 with integrated Class A filter Degree of protection IP55/UL Type 12 380-480 V 3 AC +10/-10% 47-63 Hz Power low overload: 5.5kW at 150% 3s, 110% 57s, 100% 240 s; Ambient temperature -10 to +40 °C (LO) 540x 180x 249 (HxWxD), FSB without Control Unit and operating unit released for CU230P-2 Firmware version V4.3.2 or higher
Product
Article Number (Market Facing Number)6SL3223-0DE25-5AG1
Product DescriptionSINAMICS G120P Power Module PM230 with integrated Class A filter Degree of protection IP55/UL Type 12 380-480 V 3 AC +10/-10% 47-63 Hz Power low overload: 5.5kW at 150% 3s, 110% 57s, 100% 240 s; Ambient temperature -10 to +40 °C (LO) 540x 180x 249 (HxWxD), FSB without Control Unit and operating unit released for CU230P-2 Firmware version V4.3.2 or higher
Product familyNot available
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group347 / 347
List Price Show prices
Customer Price Show prices
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Estimated dispatch time (Working Days)20 Day/Days
Net Weight (kg)6,300 Kg
Packaging Dimension0,209 x 0,626 x 0,296
Package size unit of measureM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4042948671610
UPC804766348303
Commodity Code85044085
LKZ_FDB/ CatalogIDD11.1SD
Product Group3576
Group CodeR220
Country of originGreat Britain
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number
Classifications
VersionClassification
eClass120027-02-31-01
eClass140027-02-31-01
eClass60027-02-31-01
eClass71027-02-31-01
eClass80027-02-31-01
eClass90027-02-31-01
eClass91027-02-31-01
ETIM700EC001857
ETIM800EC001857
ETIM900EC001857
IDEA4004139
UNSPSC150039-12-10-07
