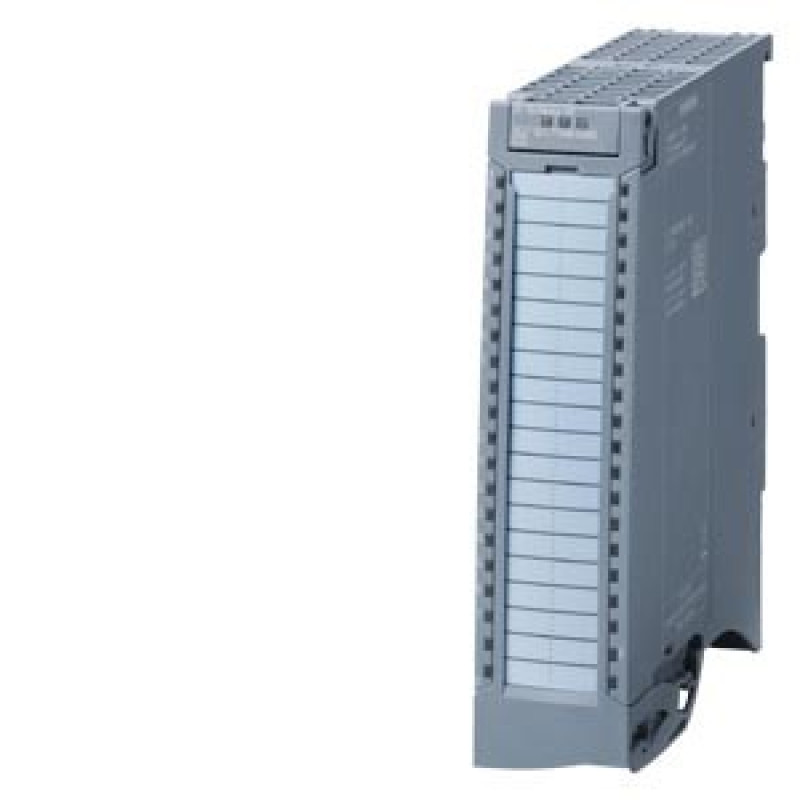

Siemens 6ES7521-7TH00-0AB0

Siemens 6ES7521-7TH00-0AB0

Siemens 6ES7521-7TH00-0AB0

Нет отзывов

Siemens

Бренд

Код товара: 6ES7521-7TH00-0AB0

0 ₽

В наличии много 1000 шт

Описание
Отзывов (0)

SIMATIC S7-1500, digital input module DI 16xNAMUR HF, 16 channels in groups of 8; for 8.2 V NAMUR encoder; sensor supply 8.2 V; input delay; parameterizable 0.05... 20 ms; integrated counting function up to 20 kHz pulse stretching; chatter monitoring; signal inversion diagnostics; hardware interrupts; all necessary components for shielding included in the scope of supply; front connector (screw terminals or push-in) to be ordered separately

Product

Article Number (Market Facing Number)

6ES7521-7TH00-0AB0

Product Description

SIMATIC S7-1500, digital input module DI 16xNAMUR HF, 16 channels in groups of 8; for 8.2 V NAMUR encoder; sensor supply 8.2 V; input delay; parameterizable 0.05... 20 ms; integrated counting function up to 20 kHz pulse stretching; chatter monitoring; signal inversion diagnostics; hardware interrupts; all necessary components for shielding included in the scope of supply; front connector (screw terminals or push-in) to be ordered separately

Product family

SM 521 digital input modules

Product Lifecycle (PLM)

PM300:Active Product

Price data

Region Specific PriceGroup / Headquarter Price Group

219 / 219

List Price

Show prices

Customer Price

Show prices

Surcharge for Raw Materials

None

Metal Factor

None

Delivery information

Export Control Regulations

AL : N / ECCN : EAR99H

Estimated dispatch time (Working Days)

1 Day/Days

Net Weight (kg)

0,415 Kg

Packaging Dimension

14,90 x 15,30 x 4,30

Package size unit of measure

CM

Quantity Unit

1 Piece

Packaging Quantity

1

Additional Product Information

EAN

4047623411581

UPC

195125474109

Commodity Code

85389091

LKZ_FDB/ CatalogID

ST73

Product Group

4501

Group Code

R151

Country of origin

Germany

Compliance with the substance restrictions according to RoHS directive

Since: 31.07.2021

Product class

A: Standard product which is a stock item could be returned within the returns guidelines/period.

WEEE (2012/19/EU) Take-Back Obligation

Yes

REACH Art. 33 Duty to inform according to the current list of candidates

Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Lead monoxide (lead... CAS-No. 1317-36-8 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

2-methyl-1-(4-methyl... CAS-No. 71868-10-5 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

4,4'-isopropylidened... CAS-No. 80-05-7 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

4,4'-isopropylidenediphenol (Bisphenol A, BPA)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number

Classifications

	Version	Classification
eClass	1200	27-24-22-04
eClass	1400	27-24-22-04
eClass	600	27-24-22-04
eClass	710	27-24-22-04
eClass	800	27-24-22-04
eClass	900	27-24-22-04
eClass	910	27-24-22-04
ETIM	700	EC001419
ETIM	800	EC001419
ETIM	900	EC001419
