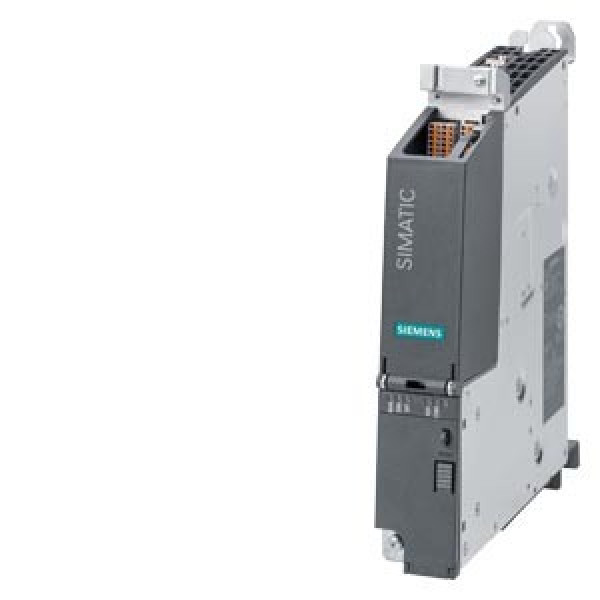

Siemens 6ES7615-7DF10-0AB0

Siemens 6ES7615-7DF10-0AB0

Siemens 6ES7615-7DF10-0AB0

Нет отзывов

Siemens

Бренд

Код товара: 6ES7615-7DF10-0AB0

0 ₽

В наличии много 1000 шт

Описание
Отзывов (0)

SIMATIC S7-1500, Drive Controller CPU 1507D TF with SINAMICS S120 Integrated; interfaces: 12 DI, 16 DI/DQ, 4 DRIVE-CLiQ, 3 PROFINET: 3+1+1 ports, 1 PROFIBUS, SIMATIC Memory Card required; supported firmware version: SIMATIC S7-1500 FW up to V3.1 (technology version up to V8.0), SINAMICS FW V5.2/V5.2 SP3

Product

Article Number (Market Facing Number)

6ES7615-7DF10-0AB0

Product Description

SIMATIC S7-1500, Drive Controller CPU 1507D TF with SINAMICS S120 Integrated; interfaces: 12 DI, 16 DI/DQ, 4 DRIVE-CLiQ, 3 PROFINET: 3+1+1 ports, 1 PROFIBUS, SIMATIC Memory Card required; supported firmware version: SIMATIC S7-1500 FW up to V3.1 (technology version up to V8.0), SINAMICS FW V5.2/V5.2 SP3

Product family

CPU 1507D TF

Product Lifecycle (PLM)

PM300:Active Product

Price data

Region Specific PriceGroup / Headquarter Price Group

2DC / 2DC

List Price

Show prices

Customer Price

Show prices

Surcharge for Raw Materials

None

Metal Factor

None

Delivery information

Export Control Regulations

AL : N / ECCN : 9N9999

Estimated dispatch time (Working Days)

1 Day/Days

Net Weight (kg)

2,400 Kg

Packaging Dimension

35,00 x 56,00 x 6,00

Package size unit of measure

CM

Quantity Unit

1 Piece

Packaging Quantity

1

Additional Product Information

EAN

4025515677307

UPC

804766987816

Commodity Code

85371091

LKZ_FDB/ CatalogID

ST73

Product Group

4A7S

Group Code

R251

Country of origin

Germany

Compliance with the substance restrictions according to RoHS directive

Since: 06.11.2019

Product class

A: Standard product which is a stock item could be returned within the returns guidelines/period.

WEEE (2012/19/EU) Take-Back Obligation

Yes

REACH Art. 33 Duty to inform according to the current list of candidates

Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

4,4'-isopropylidened... CAS-No. 80-05-7 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

4,4'-isopropylidenediphenol (Bisphenol A, BPA)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Dodecachloropentacyclo[12... > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Dodecachloropentacyclo[12.2.1.16,9.02,13.05,10]octadeca-7,15-diene (“Dechlorane Plus”™)covering any of its individual anti- and syn-isomers or any combination thereof

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number

Classifications

	Version	Classification
eClass	1200	27-24-20-02
eClass	1400	27-24-20-02
eClass	600	27-24-20-02
eClass	710	27-24-20-02
eClass	800	27-24-20-02
eClass	900	27-24-20-02
eClass	910	27-24-20-02
ETIM	700	EC000236
ETIM	800	EC000236
ETIM	900	EC000236
IDEA	400	1472
UNSPSC	1500	26-11-15-27
