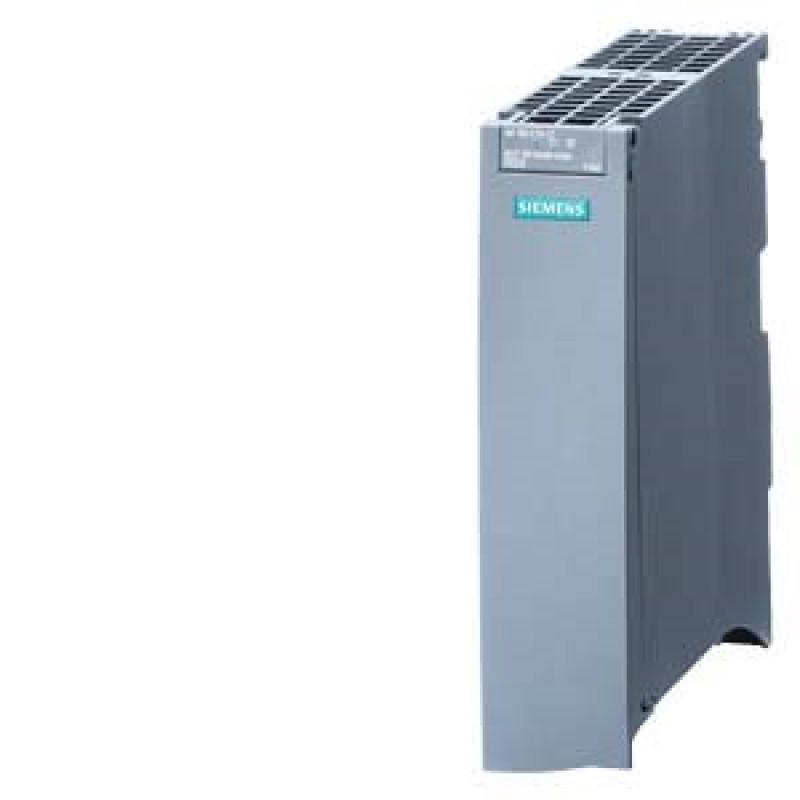

Siemens 6ES7155-5AA00-0AC0
Siemens 6ES7155-5AA00-0AC0

Siemens 6ES7155-5AA00-0AC0

Нет отзывов
Код товара: 6ES7155-5AA00-0AC0
0 ₽
В наличии много 1000 шт
SIMATIC ET 200MP. PROFINET IO device Interface module IM 155-5 PN HF, for ET 200MP electronic modules; Up to 12 IO modules without PS; Up to 30 IO modules with additional PS; Integrated 2-port switch; RJ45 shared device; MRP; IRT >=0.25 ms; Isochronous mode FW update; I&M0...3; Prioritized startup, S2 redundancy; Shared device with 4 controllers Suitable for operation with active backplane bus (FW V4.4 or higher)
Product
Article Number (Market Facing Number)6ES7155-5AA00-0AC0
Product DescriptionSIMATIC ET 200MP. PROFINET IO device Interface module IM 155-5 PN HF, for ET 200MP electronic modules; Up to 12 IO modules without PS; Up to 30 IO modules with additional PS; Integrated 2-port switch; RJ45 shared device; MRP; IRT >=0.25 ms; Isochronous mode FW update; I&M0...3; Prioritized startup, S2 redundancy; Shared device with 4 controllers Suitable for operation with active backplane bus (FW V4.4 or higher)
Product familyIM 155-5
Product Lifecycle (PLM)PM400:Phase Out Started
PLM Effective DateProduct phase-out since: 18.12.2023
NotesSucessor:The successor 6ES7155-5MU00-0CN0 - Please order the bus adapter (SIOS 109973953)
Price data
Region Specific PriceGroup / Headquarter Price Group219 / 219
List Price Show prices
Customer Price Show prices
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : 9N9999
Estimated dispatch time (Working Days)1 Day/Days
Net Weight (kg)0,359 Kg
Packaging Dimension15,10 x 15,10 x 4,70
Package size unit of measureCM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047623402237
UPC887621790059
Commodity Code85176200
LKZ_FDB/ CatalogIDST73
Product GroupX06U
Group CodeR151
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 14.02.2014
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Lead monoxide (lead... CAS-No. 1317-36-8 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

4,4'-isopropylidened... CAS-No. 80-05-7 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

4,4'-isopropylidenediphenol (Bisphenol A, BPA)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number
Classifications
VersionClassification
eClass120027-24-26-08
eClass140027-24-26-08
eClass60027-24-26-08
eClass71027-24-26-08
eClass80027-24-26-08
eClass90027-24-26-08
eClass91027-24-26-08
ETIM700EC001604
ETIM800EC001604
ETIM900EC001604
IDEA4003564
UNSPSC150032-15-17-05
