Siemens 6ES7922-5BD20-0HB0
Siemens 6ES7922-5BD20-0HB0

Siemens 6ES7922-5BD20-0HB0

Нет отзывов
Код товара: 6ES7922-5BD20-0HB0
0 ₽
В наличии много 1000 шт

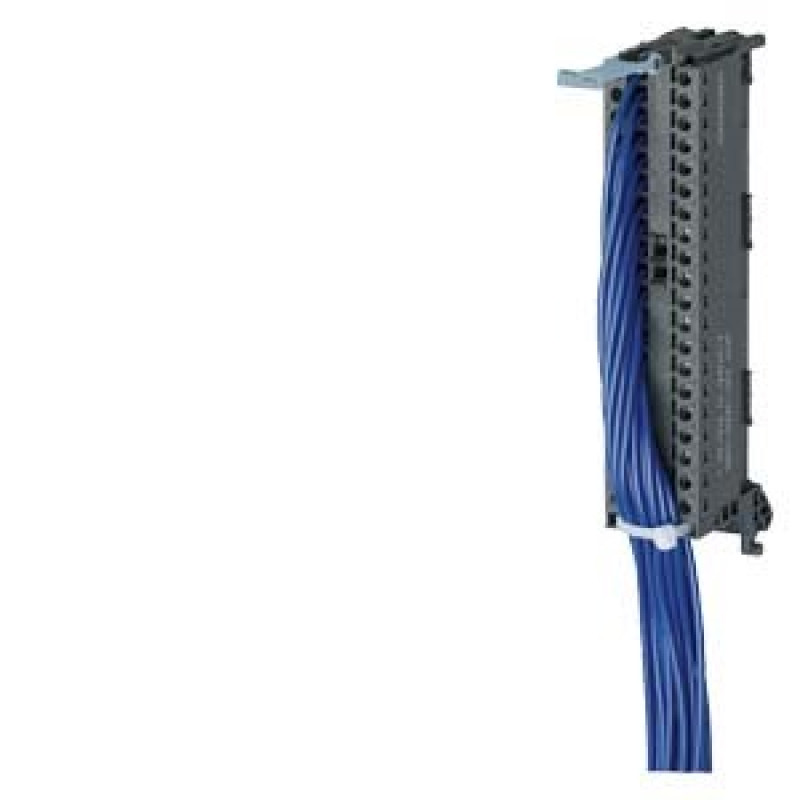

Front connector for SIMATIC S7-1500 40 pole (6ES7592-1AM00-0XB0) with 20 single cores 0.5 mm2 (1-20) Core type H05Z-K (halogen-free) Screw version L = 3.2 m
Product
Article Number (Market Facing Number)6ES7922-5BD20-0HB0
Product DescriptionFront connector for SIMATIC S7-1500 40 pole (6ES7592-1AM00-0XB0) with 20 single cores 0.5 mm2 (1-20) Core type H05Z-K (halogen-free) Screw version L = 3.2 m
Product familyFront connector with single wires
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group592 / 592
List Price Show prices
Customer Price Show prices
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Estimated dispatch time (Working Days)1 Day/Days
Net Weight (kg)0,850 Kg
Packaging Dimension30,00 x 30,00 x 6,00
Package size unit of measureCM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4025515154129
UPC804766320347
Commodity Code85444290
LKZ_FDB/ CatalogIDKT10-CA3
Product Group9394
Group CodeR315
Country of originRomania
Compliance with the substance restrictions according to RoHS directiveSince: 01.01.2013
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number
Classifications
VersionClassification
eClass120027-24-22-20
eClass140027-24-22-20
eClass60027-24-92-05
eClass71027-24-92-05
eClass80027-24-92-05
eClass90027-24-22-20
eClass91027-24-22-20
ETIM700EC000237
ETIM800EC000237
ETIM900EC000237
IDEA4003553
UNSPSC150032-15-17-03
