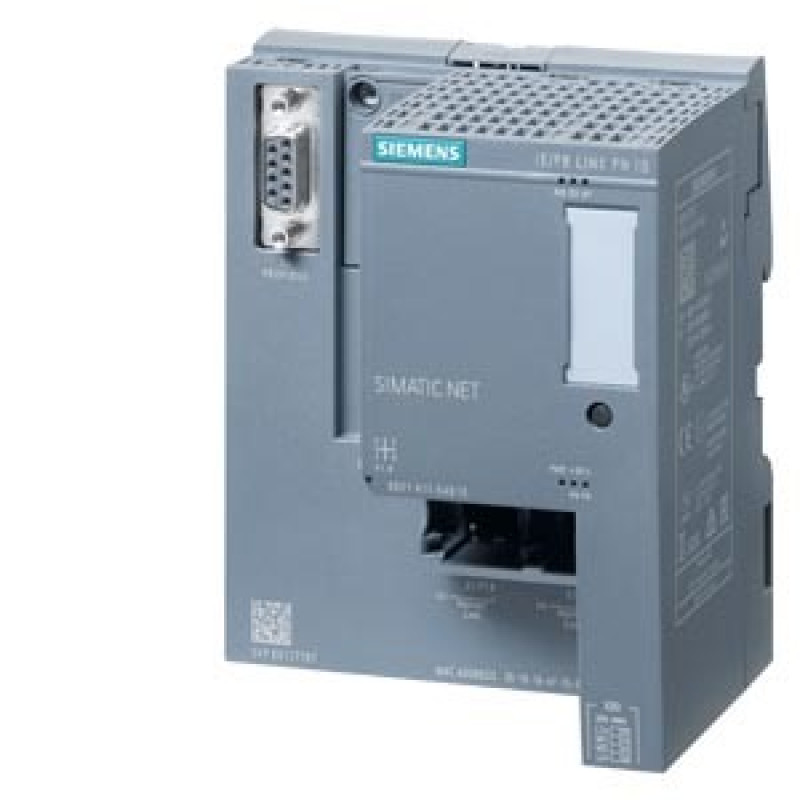

Siemens 6GK1411-5AB10

Siemens 6GK1411-5AB10

Siemens 6GK1411-5AB10

Нет отзывов

Siemens

Бренд

Код товара: 6GK1411-5AB10

0 ₽

В наличии много 1000 шт

Описание
Отзывов (0)

IE/PB link PN IO, gateway between Industrial Ethernet and PROFIBUS, PROFINET IO proxy with real-time communication, time-of-day synchronization via SIMATIC processes, NTP, SNMP v1, LLDP, S7 routing, data record routing, connection of up to 64 S7/DPV0/DPV1 slaves, support of DP/PA link and DP/FF link, 10/100 Mbit/s fast Ethernet, MRP, 9.6 Kbit/s up to 12 Mbit/s PROFIBUS, firmware loading via configuration tool, redundant power supply, firmware version V4.0.

Product

Article Number (Market Facing Number)

6GK1411-5AB10

Product Description

IE/PB link PN IO, gateway between Industrial Ethernet and PROFIBUS, PROFINET IO proxy with real-time communication, time-of-day synchronization via SIMATIC processes, NTP, SNMP v1, LLDP, S7 routing, data record routing, connection of up to 64 S7/DPV0/DPV1 slaves, support of DP/PA link and DP/FF link, 10/100 Mbit/s fast Ethernet, MRP, 9.6 Kbit/s up to 12 Mbit/s PROFIBUS, firmware loading via configuration tool, redundant power supply, firmware version V4.0.

Product family

IE/PB LINK

Product Lifecycle (PLM)

PM300:Active Product

Price data

Region Specific PriceGroup / Headquarter Price Group

5P2 / 5P2

List Price

Show prices

Customer Price

Show prices

Surcharge for Raw Materials

None

Metal Factor

None

Delivery information

Export Control Regulations

AL : N / ECCN : N

Estimated dispatch time (Working Days)

1 Day/Days

Net Weight (kg)

0,482 Kg

Packaging Dimension

100,00 x 74,00 x 117,00

Package size unit of measure

MM

Quantity Unit

1 Piece

Packaging Quantity

1

Additional Product Information

EAN

4047622155486

UPC

804766358166

Commodity Code

85176200

LKZ_FDB/ CatalogID

IK

Product Group

2413

Group Code

R322

Country of origin

Germany

Compliance with the substance restrictions according to RoHS directive

Given

Product class

A: Standard product which is a stock item could be returned within the returns guidelines/period.

WEEE (2012/19/EU) Take-Back Obligation

Yes

REACH Art. 33 Duty to inform according to the current list of candidates

Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

4,4'-isopropylidened... CAS-No. 80-05-7 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

4,4'-isopropylidenediphenol (Bisphenol A, BPA)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number

Classifications

	Version	Classification
eClass	1200	27-24-22-08
eClass	1400	27-24-22-08
eClass	600	27-24-22-08
eClass	710	27-24-22-08
eClass	800	27-24-22-08
eClass	900	27-24-22-08
eClass	910	27-24-22-08
ETIM	700	EC001423
ETIM	800	EC001423
ETIM	900	EC001423
IDEA	400	3564
UNSPSC	1500	32-15-17-05
