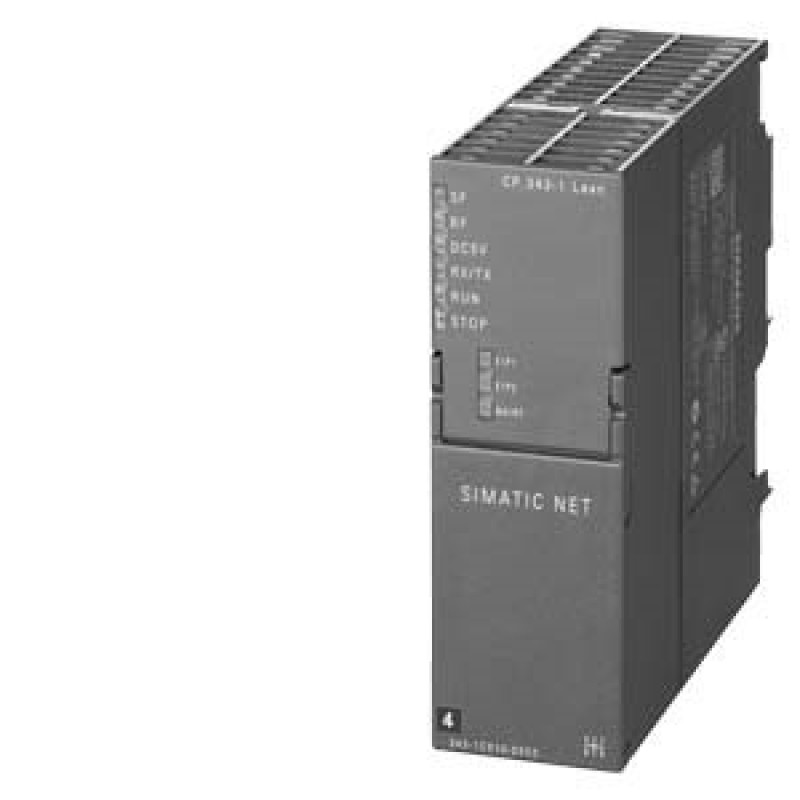

Siemens 6GK7343-1CX10-0XE0

Siemens 6GK7343-1CX10-0XE0

Siemens 6GK7343-1CX10-0XE0

Нет отзывов

Siemens

Бренд

Код товара: 6GK7343-1CX10-0XE0

0 ₽

В наличии много 1000 шт

Описание
Отзывов (0)

Communications processor CP 343-1 Lean for connection of SIMATIC S7-300 to Industrial Ethernet via TCP/IP and UDP, Multicast, SEND/RECEIVE with and without RFC1006, Fetch/ Write, S7 communication (server), PROFINET IO device integrated 2-port switch ERTEC 200, Module replacement without PG, SNMP diagnostics, initialization via LAN, 2x RJ45 connection for LAN with 10/100 Mbit/s

Product

Article Number (Market Facing Number)

6GK7343-1CX10-0XE0

Product Description

Communications processor CP 343-1 Lean for connection of SIMATIC S7-300 to Industrial Ethernet via TCP/IP and UDP, Multicast, SEND/RECEIVE with and without RFC1006, Fetch/ Write, S7 communication (server), PROFINET IO device integrated 2-port switch ERTEC 200, Module replacement without PG, SNMP diagnostics, initialization via LAN, 2x RJ45 connection for LAN with 10/100 Mbit/s

Product family

CP 343-1 Lean

Product Lifecycle (PLM)

PM400:Phase Out Started

PLM Effective Date

Product phase-out since: 01.10.2023

Price data

Region Specific PriceGroup / Headquarter Price Group

5P2 / 5P2

List Price

Show prices

Customer Price

Show prices

Surcharge for Raw Materials

None

Metal Factor

None

Delivery information

Export Control Regulations

AL : N / ECCN : N

Estimated dispatch time (Working Days)

1 Day/Days

Net Weight (kg)

0,299 Kg

Packaging Dimension

25,00 x 210,00 x 290,00

Package size unit of measure

MM

Quantity Unit

1 Piece

Packaging Quantity

1

Additional Product Information

EAN

4019169145060

UPC

662643193862

Commodity Code

85176200

LKZ_FDB/ CatalogID

IK-A

Product Group

2413

Group Code

R322

Country of origin

Germany

Compliance with the substance restrictions according to RoHS directive

Since: 28.08.2007

Product class

A: Standard product which is a stock item could be returned within the returns guidelines/period.

WEEE (2012/19/EU) Take-Back Obligation

Yes

REACH Art. 33 Duty to inform according to the current list of candidates

Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Tris(4-nonylphenyl, branc... > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Tris(4-nonylphenyl, branched and linear) phosphite (TNPP) with greater than or equal to 0.1% w/w of 4-nonylphenol, branched and linear (4-NP)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number

Classifications

	Version	Classification
eClass	1200	27-24-22-08
eClass	1400	27-24-22-08
eClass	600	27-24-22-08
eClass	710	27-24-22-08
eClass	800	27-24-22-08
eClass	900	27-24-22-08
eClass	910	27-24-22-08
ETIM	700	EC001423
ETIM	800	EC001423
ETIM	900	EC001423
IDEA	400	3564
UNSPSC	1500	32-15-17-05
