Siemens 6NH7803-4BA00-0AA0
Siemens 6NH7803-4BA00-0AA0

Siemens 6NH7803-4BA00-0AA0

Нет отзывов
Код товара: 6NH7803-4BA00-0AA0
0 ₽
В наличии много 1000 шт

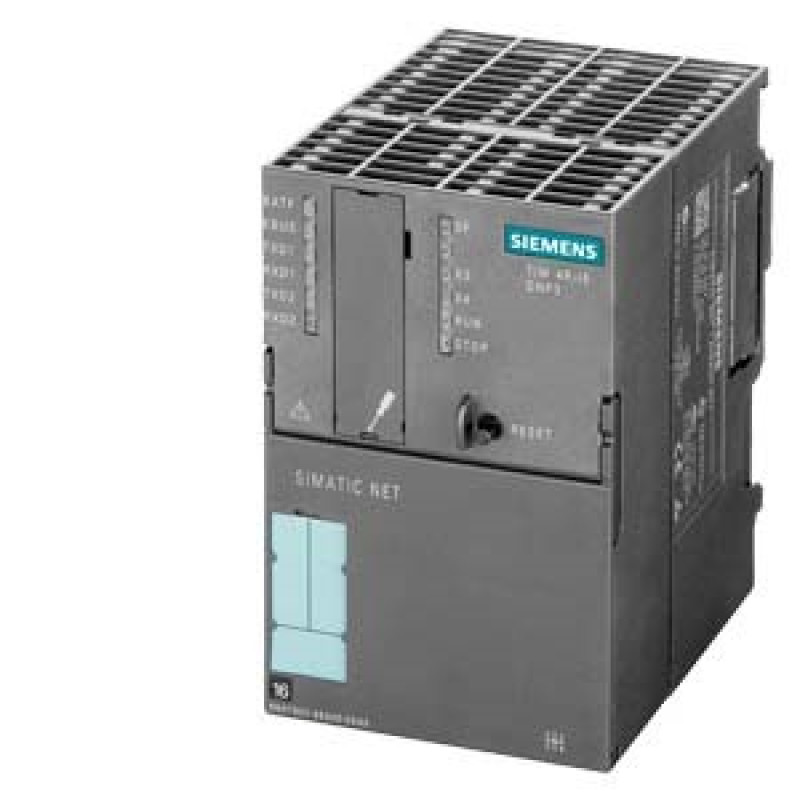

TIM 4R-IE DNP3 communications module for SIMATIC S7-300, S7-400, PC; with two RS232/RS485 Interfaces for DNP3- Communication via standard WAN networks and two RJ45 interfaces for DNP3 communication via IP-based networks (WAN or LAN).
Product
Article Number (Market Facing Number)6NH7803-4BA00-0AA0
Product DescriptionTIM 4R-IE DNP3 communications module for SIMATIC S7-300, S7-400, PC; with two RS232/RS485 Interfaces for DNP3- Communication via standard WAN networks and two RJ45 interfaces for DNP3 communication via IP-based networks (WAN or LAN).
Product familyTIM 4R-IE DNP3 (for S7-300/-400)
Product Lifecycle (PLM)PM400:Phase Out Started
PLM Effective DateProduct phase-out since: 01.10.2023
NotesThe product was replaced with the following successor product:
6GK7543-1MX00-0XE0Compare Products
Successor information
Successor6GK7543-1MX00-0XE0
Successor DescriptionTIM 1531 IRC Communications module for SIMATIC S7-1500, S7-400, S7-300 and ET200SP with SINAUT ST7, DNP3 and IEC 60870-5-101/104 with three RJ45 interfaces for communication via IP-based networks (WAN / LAN) and an RS-232/RS-485 interface for communication via classic wide area networks.
Price data
Region Specific PriceGroup / Headquarter Price Group5T1 / 5T1
List Price Show prices
Customer Price Show prices
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Estimated dispatch time (Working Days)1 Day/Days
Net Weight (kg)0,472 Kg
Packaging Dimension80,00 x 120,00 x 125,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4019169220354
UPC040892786491
Commodity Code85176200
LKZ_FDB/ CatalogIDIK-A
Product Group2461
Group CodeR322
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveGiven
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Tris(4-nonylphenyl, branc... > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Tris(4-nonylphenyl, branched and linear) phosphite (TNPP) with greater than or equal to 0.1% w/w of 4-nonylphenol, branched and linear (4-NP)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number
Classifications
VersionClassification
eClass120027-24-22-08
eClass140027-24-22-08
eClass60027-24-22-08
eClass71027-24-22-08
eClass80027-24-22-08
eClass90027-24-22-08
eClass91027-24-22-08
ETIM700EC001423
ETIM800EC001423
ETIM900EC001423
IDEA4003564
UNSPSC150032-15-17-05
