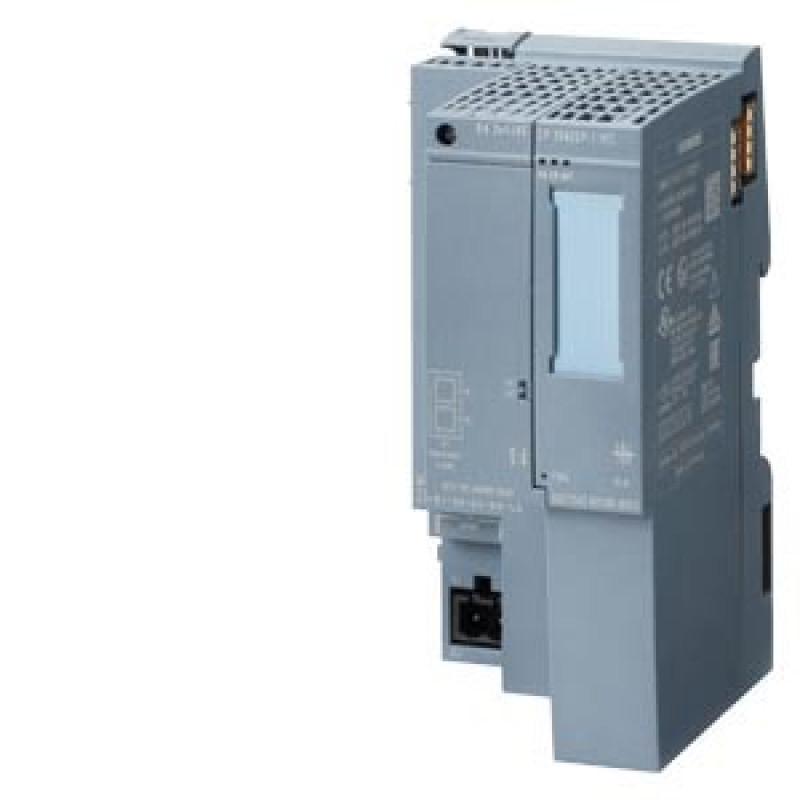

Siemens 6GK7542-6VX00-0XE0

Siemens 6GK7542-6VX00-0XE0

Siemens 6GK7542-6VX00-0XE0

Нет отзывов

Siemens

Бренд

Код товара: 6GK7542-6VX00-0XE0

0 ₽

В наличии много 1000 шт

Описание
Отзывов (0)

Communications Processor CP 1542SP-1 IRC for connection of an SIMATIC S7-ET 200SP to Industrial Ethernet, SINAUT ST7, TeleControl Server Basic, IEC 60870-5-104 or DNP3 protocol to a control center; Open IE communication (TCP/IP, ISO-on-TCP, UDP), IP broadcast/multicast, SNMPV1, DHCP, secure email, IPv4/IPv6, support of SINEMA Remote Connect with autoconfiguration; time-of-day synchronization via NTP, access to web server of CPU, BusAdapter required.

Product

Article Number (Market Facing Number)

6GK7542-6VX00-0XE0

Product Description

Communications Processor CP 1542SP-1 IRC for connection of an SIMATIC S7-ET 200SP to Industrial Ethernet, SINAUT ST7, TeleControl Server Basic, IEC 60870-5-104 or DNP3 protocol to a control center; Open IE communication (TCP/IP, ISO-on-TCP, UDP), IP broadcast/multicast, SNMPV1, DHCP, secure email, IPv4/IPv6, support of SINEMA Remote Connect with autoconfiguration; time-of-day synchronization via NTP, access to web server of CPU, BusAdapter required.

Product family

CP 1542SP-1 IRC

Product Lifecycle (PLM)

PM300:Active Product

Price data

Region Specific PriceGroup / Headquarter Price Group

5P2 / 5P2

List Price

Show prices

Customer Price

Show prices

Surcharge for Raw Materials

None

Metal Factor

None

Delivery information

Export Control Regulations

AL : N / ECCN : N

Estimated dispatch time (Working Days)

1 Day/Days

Net Weight (kg)

0,201 Kg

Packaging Dimension

57,00 x 121,00 x 5,00

Package size unit of measure

MM

Quantity Unit

1 Piece

Packaging Quantity

1

Additional Product Information

EAN

4047622403563

UPC

804766362019

Commodity Code

85176200

LKZ_FDB/ CatalogID

IK

Product Group

2443

Group Code

R322

Country of origin

Germany

Compliance with the substance restrictions according to RoHS directive

Since: 27.02.2013

Product class

A: Standard product which is a stock item could be returned within the returns guidelines/period.

WEEE (2012/19/EU) Take-Back Obligation

Yes

REACH Art. 33 Duty to inform according to the current list of candidates

Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

4,4'-isopropylidened... CAS-No. 80-05-7 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

4,4'-isopropylidenediphenol (Bisphenol A, BPA)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number

Classifications

	Version	Classification
eClass	1200	27-24-22-08
eClass	1400	27-24-22-08
eClass	600	27-24-22-08
eClass	710	27-24-22-08
eClass	800	27-24-22-08
eClass	900	27-24-22-08
eClass	910	27-24-22-08
ETIM	700	EC001423
ETIM	800	EC001423
ETIM	900	EC001423
IDEA	400	3564
UNSPSC	1500	32-15-17-05
