Siemens 3SE5162-0CH63-1AN6
Siemens 3SE5162-0CH63-1AN6

Siemens 3SE5162-0CH63-1AN6

Нет отзывов
Код товара: 3SE5162-0CH63-1AN6
0 ₽
В наличии много 1000 шт

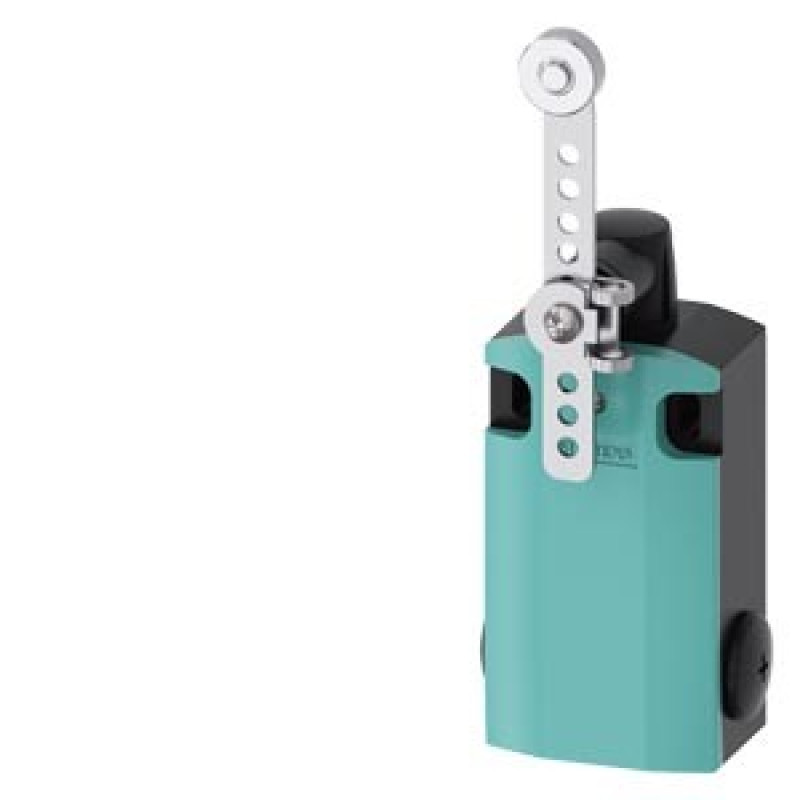

SIRIUS position switch Metal enclosure XL, 56 mm wide, with twist lever, adjustable-length with Grid hole, Stainless steel lever, stainless steel roller 19mm, Increased corrosion protection (increased corrosion protection), connection 3X(M20x1.5) gold-plated contacts: 2x(1 NO/1 NC) Quick action contacts, adapter 3SX5100-3B (with toothed lock washer) enclosed, Suitable for use at -40 degrees
Product
Article Number (Market Facing Number)3SE5162-0CH63-1AN6
Product DescriptionSIRIUS position switch Metal enclosure XL, 56 mm wide, with twist lever, adjustable-length with Grid hole, Stainless steel lever, stainless steel roller 19mm, Increased corrosion protection (increased corrosion protection), connection 3X(M20x1.5) gold-plated contacts: 2x(1 NO/1 NC) Quick action contacts, adapter 3SX5100-3B (with toothed lock washer) enclosed, Suitable for use at -40 degrees
Product family3SE5, metal enclosures
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41K / 41K
List Price Show prices
Customer Price Show prices
Surcharge for Raw MaterialsNone
Metal FactorLA------
Delivery information
Export Control RegulationsAL : N / ECCN : N
Estimated dispatch time (Working Days)5 Day/Days
Net Weight (kg)0,511 Kg
Packaging Dimension76,00 x 164,00 x 58,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047621047584
UPCNot available
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group5317
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number
Classifications
VersionClassification
eClass120027-27-06-01
eClass140027-27-06-01
eClass60027-27-06-01
eClass71027-27-06-01
eClass80027-27-06-01
eClass90027-27-06-01
eClass91027-27-06-01
ETIM700EC000030
ETIM800EC000030
ETIM900EC000030
IDEA4005202
UNSPSC150039-12-22-13
