Siemens 6AV3688-3EH47-0AX0

Siemens 6AV3688-3EH47-0AX0

Siemens 6AV3688-3EH47-0AX0

Нет отзывов

Siemens

Бренд

Код товара: 6AV3688-3EH47-0AX0

0 ₽

В наличии много 1000 шт

Описание
Отзывов (0)

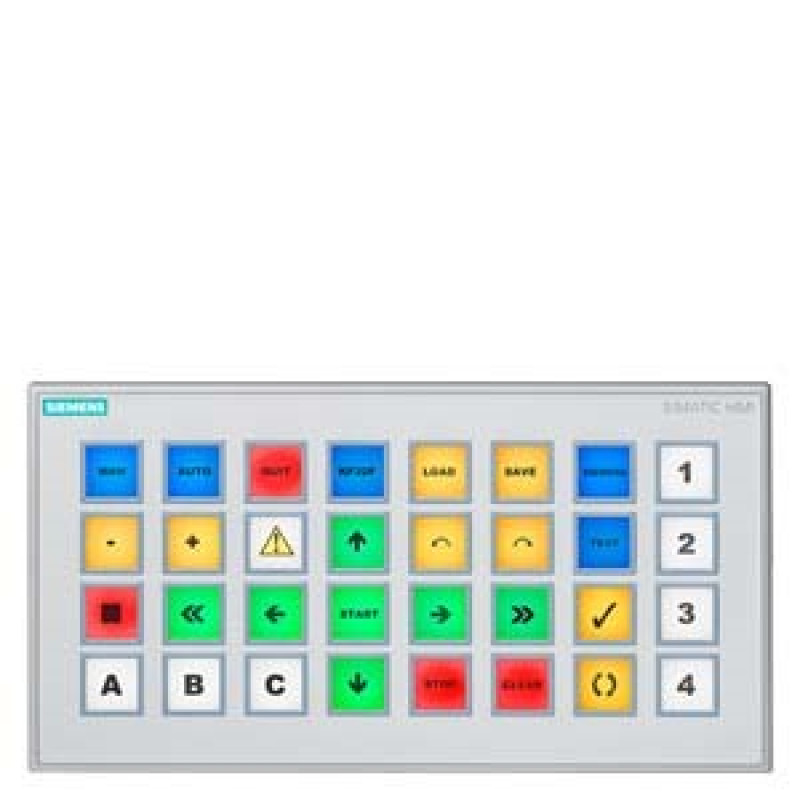

SIMATIC HMI KP32F PN, Key Panel, 32 short-stroke keys with multi-colored LEDs, PROFINET interfaces with PROFIsafe, 16 DI+16 DI/DO, 4 safety DI pins, 24 V DC can be looped through parameterizable as of STEP 7 V5.5

Product

Article Number (Market Facing Number)

6AV3688-3EH47-0AX0

Product Description

SIMATIC HMI KP32F PN, Key Panel, 32 short-stroke keys with multi-colored LEDs, PROFINET interfaces with PROFIsafe, 16 DI+16 DI/DO, 4 safety DI pins, 24 V DC can be looped through parameterizable as of STEP 7 V5.5

Product family

SIMATIC HMI KP8/KP8F/KP32F

Product Lifecycle (PLM)

PM300:Active Product

Price data

Region Specific PriceGroup / Headquarter Price Group

239 / 239

List Price

Show prices

Customer Price

Show prices

Surcharge for Raw Materials

None

Metal Factor

None

Delivery information

Export Control Regulations

AL : N / ECCN : 9N9999

Estimated dispatch time (Working Days)

30 Day/Days

Net Weight (kg)

1,871 Kg

Packaging Dimension

33,70 x 46,30 x 13,20

Package size unit of measure

CM

Quantity Unit

1 Piece

Packaging Quantity

1

Additional Product Information

EAN

4025515080350

UPC

040892914832

Commodity Code

85371091

LKZ_FDB/ CatalogID

ST80.1A

Product Group

3406

Group Code

R141

Country of origin

Germany

Compliance with the substance restrictions according to RoHS directive

Since: 18.11.2011

Product class

A: Standard product which is a stock item could be returned within the returns guidelines/period.

WEEE (2012/19/EU) Take-Back Obligation

Yes

REACH Art. 33 Duty to inform according to the current list of candidates

Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Lead monoxide (lead... CAS-No. 1317-36-8 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Silicic acid, lead s... CAS-No. 11120-22-2 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Silicic acid, lead salt

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

2-methyl-1-(4-methyl... CAS-No. 71868-10-5 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Dodecachloropentacyclo[12... > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Dodecachloropentacyclo[12.2.1.16,9.02,13.05,10]octadeca-7,15-diene (“Dechlorane Plus”™)covering any of its individual anti- and syn-isomers or any combination thereof

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

4,4'-isopropylidened... CAS-No. 80-05-7 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

4,4'-isopropylidenediphenol (Bisphenol A, BPA)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number

Classifications

	Version	Classification
eClass	1200	27-33-02-04
eClass	1400	27-33-02-04
eClass	600	27-24-23-05
eClass	710	27-24-23-05
eClass	800	27-24-23-05
eClass	900	27-33-02-04
eClass	910	27-33-02-04
ETIM	700	EC001415
ETIM	800	EC001415
ETIM	900	EC001415
IDEA	400	5266
UNSPSC	1500	39-12-22-21
