Siemens 1PH1133-1LD10-1GA0
Siemens 1PH1133-1LD10-1GA0

Siemens 1PH1133-1LD10-1GA0

Нет отзывов
Код товара: 1PH1133-1LD10-1GA0
0 ₽
В наличии много 1000 шт

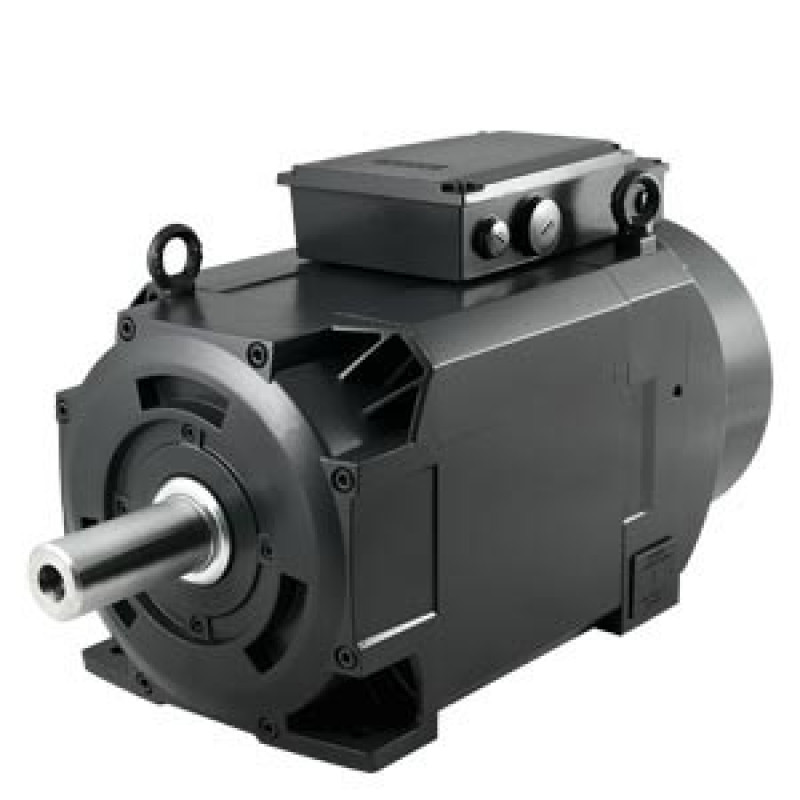

Main motor 1PH1 for SINAMICS V70; Operating voltage 380 V 3AC Pn=11 kW; Nn=1000 rpm Mn=105 Nm Shaft height 132 mm Incremental encoder TTL 2500 incr./rev. shaft with feather key, full-key balancing, forced ventilation Direction of air flow NDE->DE; IP54 compatible with the converters SINAMICS V70 Vibration severity R/A shaft end and flange Accuracy R Power and signal connection right
Product
Article Number (Market Facing Number)1PH1133-1LD10-1GA0
Product DescriptionMain motor 1PH1 for SINAMICS V70; Operating voltage 380 V 3AC Pn=11 kW; Nn=1000 rpm Mn=105 Nm Shaft height 132 mm Incremental encoder TTL 2500 incr./rev. shaft with feather key, full-key balancing, forced ventilation Direction of air flow NDE->DE; IP54 compatible with the converters SINAMICS V70 Vibration severity R/A shaft end and flange Accuracy R Power and signal connection right
Product family1PH1 for SINAMICS V70 spindle drive
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group761 / 761
List Price Show prices
Customer Price Show prices
Surcharge for Raw MaterialsNone
Metal Factor------71
Delivery information
Export Control RegulationsAL : N / ECCN : N
Estimated dispatch time (Working Days)45 Day/Days
Net Weight (kg)92,600 Kg
Package size unit of measureNot available
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EANNot available
UPC804766479779
Commodity Code85015230
LKZ_FDB/ CatalogIDNC81
Product Group9018
Group CodeR220
Country of originChina
Compliance with the substance restrictions according to RoHS directiveSince: 01.01.2018
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number
Classifications
VersionClassification
eClass120027-02-24-01
eClass140027-02-24-01
eClass60027-02-24-01
eClass71027-02-24-01
eClass80027-02-24-01
eClass90027-02-24-01
eClass91027-02-24-01
ETIM700EC001851
ETIM800EC001851
ETIM900EC001851
