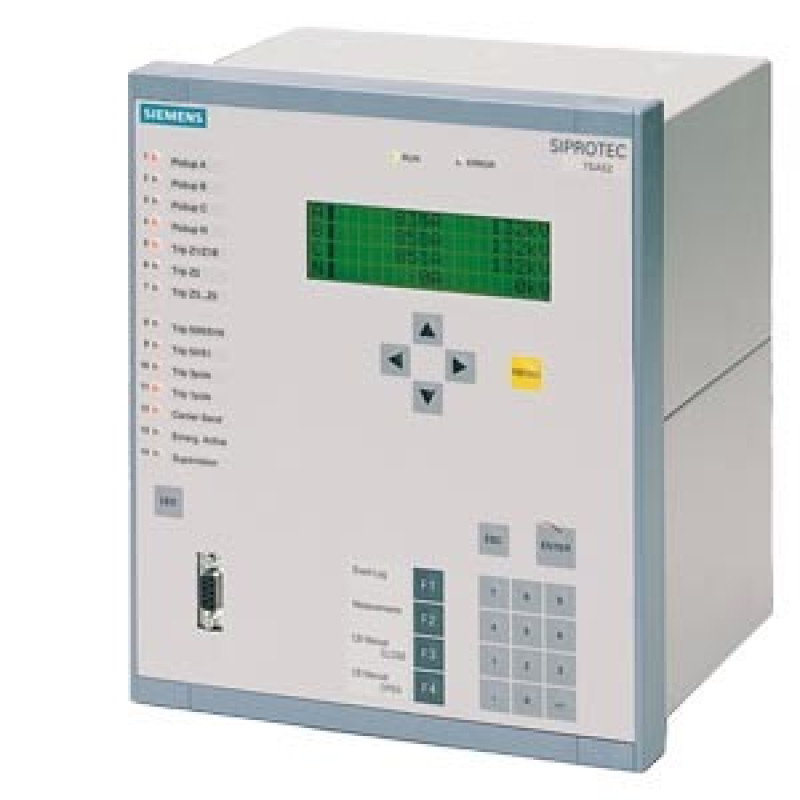

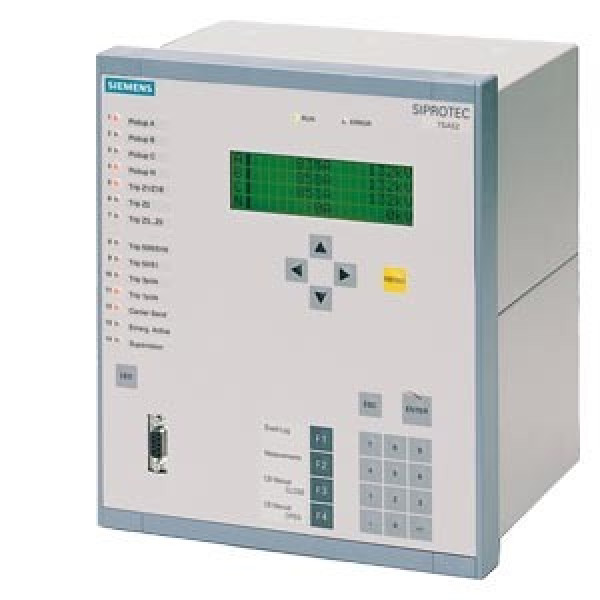

Siemens 7XT3400-0CA00
Siemens 7XT3400-0CA00

Siemens 7XT3400-0CA00

Нет отзывов
Код товара: 7XT3400-0CA00
0 ₽
В наличии много 1000 шт
20 HZ BANDPASS FOR STATOR EARTH FAULT 100% PROTECTION THE 20HZ BANDPASS FILTERS THE SQUARE-WAVE VOLTAGE AND TRANS- FORMS IT TO SINUS CURVES WITH FREQUENCIES OF APPROX. 20HZ. THE INTERNAL RESISTANCE IS THEN EQUAL TO APPROX. 8 OHM. AT THE SAME TIME IT PROJECTS THE 20HZ FREQUENCY GENERATOR IN CASE OF EARTH FAULT WITH FULL DISPLACE- MENT VOLTAGE. AT RATED FREQ. THE RESISTANCE IS APPROX. 160 OHM (50HZ), 200 OHM (60HZ). MAX. POWER CONSUMPTION IS APPROX. 80VA. IN 7XP20 CASE FOR FLUSH MOUNTING
Product
Article Number (Market Facing Number)7XT3400-0CA00
Product Description20 HZ BANDPASS FOR STATOR EARTH FAULT 100% PROTECTION THE 20HZ BANDPASS FILTERS THE SQUARE-WAVE VOLTAGE AND TRANS- FORMS IT TO SINUS CURVES WITH FREQUENCIES OF APPROX. 20HZ. THE INTERNAL RESISTANCE IS THEN EQUAL TO APPROX. 8 OHM. AT THE SAME TIME IT PROJECTS THE 20HZ FREQUENCY GENERATOR IN CASE OF EARTH FAULT WITH FULL DISPLACE- MENT VOLTAGE. AT RATED FREQ. THE RESISTANCE IS APPROX. 160 OHM (50HZ), 200 OHM (60HZ). MAX. POWER CONSUMPTION IS APPROX. 80VA. IN 7XP20 CASE FOR FLUSH MOUNTING
Product family7XT34 - 20 Hz band pass for 100 % stator earth fault protection
Product Lifecycle (PLM)PM300:Active Product
NotesSucessor:7XT34000CA00 BB and 7XT34000CB00 BB to be replaced by 7XT34000CA00 CC
Price data
Region Specific PriceGroup / Headquarter Price Group184 / B10
List Price Show prices
Customer Price Show prices
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Estimated dispatch time (Working Days)10 Day/Days
Net Weight (kg)15,600 Kg
Packaging Dimension42,60 x 43,00 x 42,40
Package size unit of measureCM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EANNot available
UPCNot available
Commodity Code85437090
LKZ_FDB/ CatalogIDLSA2
Product Group1320
Group CodeU321
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 26.06.2017
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number
Classifications
VersionClassification
UNSPSC150032-15-17-05
