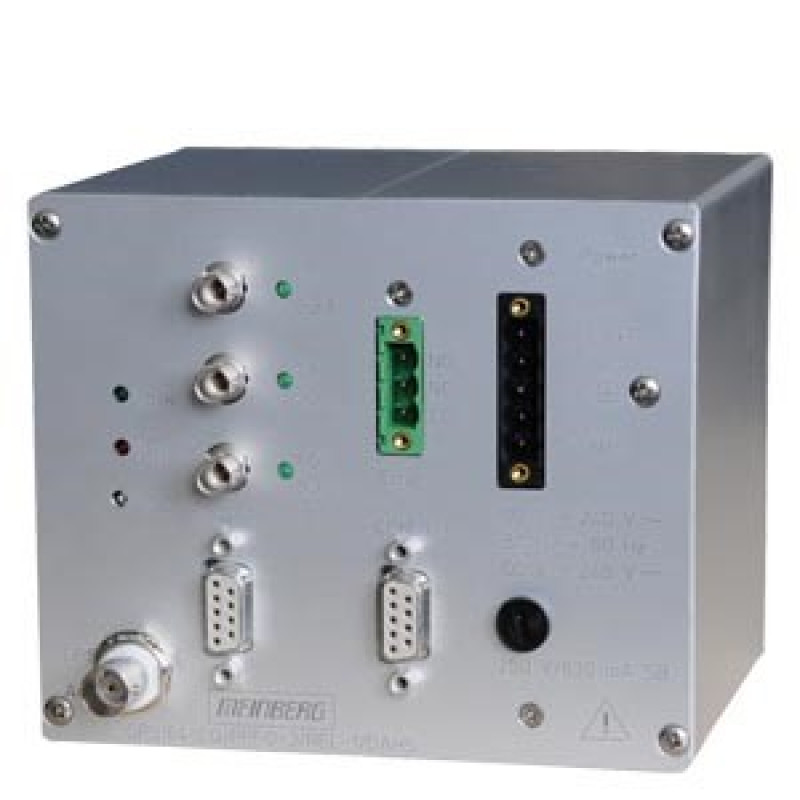

Siemens 7XV5664-1AA10
Siemens 7XV5664-1AA10

Siemens 7XV5664-1AA10

Нет отзывов
Код товара: 7XV5664-1AA10
0 ₽
В наличии много 1000 шт
SPECIFIC PRECISE SYNCHRONIZING FOR SIPROTEC 5-PMU, DIFFEREN- TIAL PROTECTION, 7KE85 AND SIMEAS R-PMU. ALSO FOR NORMAL TIME SYNCHRONIZING OF SIPROTEC 3/4/5 AND PQ e.g. SICAM Q80 V3 AND SIEMEAS R(SYNC-BOX REPLACE). TIME RECEIVER WITH PRECISE INTEGRATED CLOCK, WITH GPS- ANTENNA, LIGHTNING PROTECTION AND 50M (+5M) RG58 CABLE. 3 PROGRAMMABLE OPTICAL OUTPUTS (HIGH PRECISION PULS, IRIG-B, DCF77) WITH ST-PLUGS FOR 50/ 125μM OR 62,5/125μM, 850NM MUL- TIMODE FIBER. AUXILIARY VOLTAGE 19V-72V DC. WITH FAIL SAVE RELAY. DIN RAIL MOUNTING. PARAMETERIZATION-SW AND -CABLE.
Product
Article Number (Market Facing Number)7XV5664-1AA10
Product DescriptionSPECIFIC PRECISE SYNCHRONIZING FOR SIPROTEC 5-PMU, DIFFEREN- TIAL PROTECTION, 7KE85 AND SIMEAS R-PMU. ALSO FOR NORMAL TIME SYNCHRONIZING OF SIPROTEC 3/4/5 AND PQ e.g. SICAM Q80 V3 AND SIEMEAS R(SYNC-BOX REPLACE). TIME RECEIVER WITH PRECISE INTEGRATED CLOCK, WITH GPS- ANTENNA, LIGHTNING PROTECTION AND 50M (+5M) RG58 CABLE. 3 PROGRAMMABLE OPTICAL OUTPUTS (HIGH PRECISION PULS, IRIG-B, DCF77) WITH ST-PLUGS FOR 50/ 125μM OR 62,5/125μM, 850NM MUL- TIMODE FIBER. AUXILIARY VOLTAGE 19V-72V DC. WITH FAIL SAVE RELAY. DIN RAIL MOUNTING. PARAMETERIZATION-SW AND -CABLE.
Product family7XV5664-1 - GPS Time Synchronization Unit
Product Lifecycle (PLM)PM410:Product cancellation
PLM Effective DateProduct is cancelled since: 10.10.2024
NotesSucessor:GNSS clock 7XV5664-1AB10 in preparation
Price data
Region Specific PriceGroup / Headquarter Price Group183 / B10
List Price Show prices
Customer Price Show prices
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Estimated dispatch time (Working Days)On request
Net Weight (kg)1,000 Kg
Packaging Dimension50,00 x 60,00 x 40,00
Package size unit of measureCM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4025515717423
UPCNot available
Commodity Code91059100
LKZ_FDB/ CatalogIDPTD/EA
Product Group1320
Group CodeU321
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 18.11.2015
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationNo
REACH Art. 33 Duty to inform according to the current list of candidates
Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number
Classifications
VersionClassification
UNSPSC150032-15-17-05
